AQS225R2SZ - Panasonic

Description: Solid State Relays - PCB Mount AC/DC type 80V 70 mA SOP Form A Norm-Open

Download AQS225R2SZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

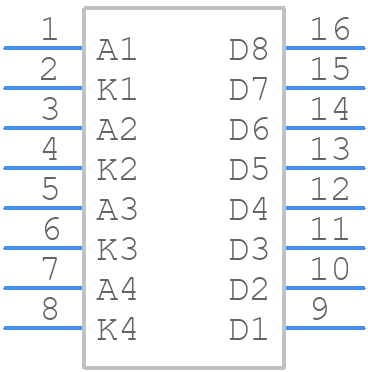

AQS225R2SZ - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQS225R2SZ - Panasonic PCB footprint - Small Outline Packages - Small Outline Packages - AQS225R2S
click to zoom
3D Models
AQS225R2SZ - Panasonic - 3D model - Small Outline Packages - AQS225R2S
click to zoom

AQS225R2SZ Details

  • Manufacturer Part Number:

    AQS225R2SZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.173 X 0.408 INCH, 0.083 INCH HEIGHT, SUPER MINIATURE, SOP-16

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.59

  • Configuration:

    SEPARATE, 4 ELEMENTS

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    1500 V

  • JESD-609 Code:

    e6

  • Number of Elements:

    4

  • On-State Current-Max:

    0.07 A

  • On-state Resistance-Max:

    15 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    TR

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)
