Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
AQW216EHAZ has a high power dissipation rating. Ensure proper thermal management by providing adequate heat sinking, using thermal interface materials, and optimizing airflow around the component. Consult Panasonic's thermal design guides for more information.
Panasonic recommends following the J-STD-020D.1 standard for soldering conditions. The recommended temperature profile is 240°C ± 5°C for 3-5 seconds, with a peak temperature of 260°C. Ensure proper soldering techniques and equipment to prevent damage to the component.
AQW216EHAZ is designed to withstand certain levels of vibration and shock. However, it's essential to consult Panasonic's reliability and environmental testing data to ensure the component meets your specific application requirements. You may need to add additional mechanical support or design considerations to ensure reliability.
Consult Panasonic's troubleshooting guides and application notes for common issues and solutions. Also, ensure proper debugging techniques, such as monitoring voltage and current, checking for overheating, and verifying correct component orientation and soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW216EHAZ Overview

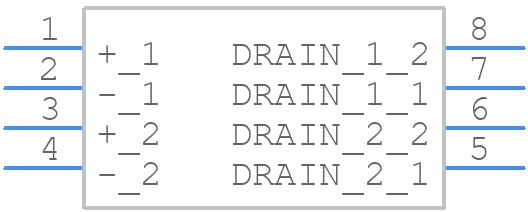

Use the download button to access the AQW216EHAZ schematic symbol, PCB footprint, and 3D model.
