- Part Number AQW223R2S
- Manufacturer Panasonic
- Pin Count 8
- Part Category Relay or Contactor
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOP-8
- Released Date Aug 20, 2020
- Last Modified Date Dec 9, 2025 10:00 AM UTC
- Pinout / Pin List Click Here (Member Only)
AQW223R2S Details
-
Manufacturer Part Number:
AQW223R2S
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8541.40.95.00
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
5.59
-
Additional Feature:
UL RECOGNIZED
-
Configuration:
SEPARATE, 2 ELEMENTS
-
Forward Current-Max:
0.05 A
AQW223R2S Frequently Asked Questions (FAQs)
-
The maximum switching frequency of the AQW223R2S relay is 30 operations per minute.
-
Yes, the AQW223R2S relay can operate in high-temperature environments up to 85°C, but the relay's lifespan may be affected.
-
The recommended PCB layout for the AQW223R2S relay is to keep the relay away from high-frequency components and to use a ground plane to reduce electromagnetic interference.
-
No, the AQW223R2S relay is not designed for safety-critical applications and should not be used in applications where failure could result in injury or death.
-
The recommended storage condition for the AQW223R2S relay is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 70%.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
AQW223R2S Overview

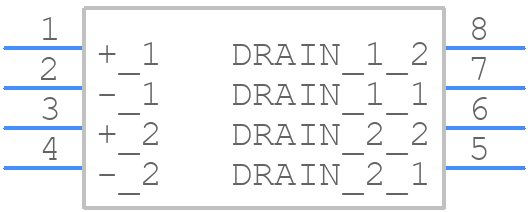

Use the download button to access the AQW223R2S schematic symbol, PCB footprint, and 3D model.
