AQW610EH - Panasonic

Description: Solid State Relays - PCB Mount 120MA 350V 1FORMA / 1FORMB

Download AQW610EH Model

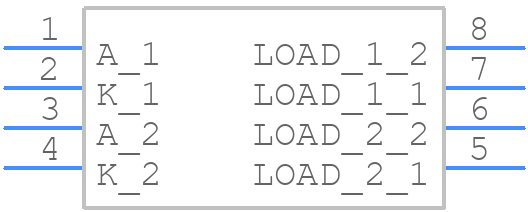

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AQW610EH - Panasonic PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-Pin DIP_AQW_1
click to zoom
3D Models
AQW610EH - Panasonic  - 3D model - Dual-In-Line Packages - 8-Pin DIP_AQW_1
click to zoom

AQW610EH Details

  • Manufacturer Part Number:

    AQW610EH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    4

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • Forward Current-Max:

    0.05 A

  • Input Type:

    AC/DC

  • Isolation Voltage-Max:

    5000 V

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    2

  • On-state Resistance-Max:

    25 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    3.9 mm

  • Overall Length:

    9.78 mm

  • Packing Method:

    TUBE

  • Surface Mount:

    NO

AQW610EH Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
  • Proper thermal management is crucial for the AQW610EH. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias. Follow Panasonic's thermal design guidelines and consider using a thermal simulation tool to optimize your design.
  • Panasonic recommends following the J-STD-020D.1 standard for soldering conditions. The recommended temperature profile is: peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. Ensure proper soldering techniques and avoid overheating to prevent damage to the device.
  • To ensure reliability, follow proper design and manufacturing guidelines, including PCB layout, soldering, and assembly. Implement adequate protection circuits, such as overvoltage and overcurrent protection, and ensure the device operates within its recommended specifications. Regularly monitor the device's operating conditions and perform maintenance as needed.
  • The AQW610EH has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, tools, and equipment, and ensure personnel handling the device are grounded or use ESD-protective gear.
