Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper thermal management and to prevent damage to the relay.
The AQW614EHA requires a specific drive circuit to operate correctly. Engineers should refer to the application notes and design guides provided by Panasonic to ensure the relay is properly driven and controlled.
When using the AQW614EHA in a high-vibration or high-shock environment, engineers should consider adding additional mechanical support or reinforcement to prevent damage to the relay or PCB. They should also ensure that the relay is properly secured to the PCB and that the PCB is designed to withstand the environmental stresses.
To troubleshoot issues with the AQW614EHA relay, engineers should first consult the datasheet and application notes. They should also check the relay's operating conditions, drive circuit, and PCB layout to ensure they meet the recommended specifications. If issues persist, engineers can contact Panasonic's technical support for further assistance.
The AQW614EHA relay can generate heat during operation, so engineers should ensure proper thermal management by providing adequate heat dissipation paths, using thermal interfaces or heat sinks if necessary, and following Panasonic's recommended PCB layout and design guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQW614EHA Overview

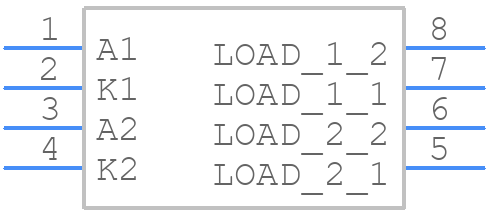

Use the download button to access the AQW614EHA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AQW61,
or try a keyword search, such as Solid State Relays
