Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
Proper thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and avoid blocking airflow around the relay module. Also, consider the ambient temperature and heat generation from surrounding components.
Follow the recommended soldering profile provided by Panasonic, which typically includes a peak temperature of 260°C, a soldering time of 3-5 seconds, and a preheating temperature of 120-150°C.
Use proper shielding, grounding, and filtering techniques to minimize EMI. Ensure the relay module is placed at a safe distance from sensitive components, and consider using EMI-absorbing materials or shielding cans if necessary.
Exceeding the rated current or voltage can lead to reduced lifespan, overheating, or even catastrophic failure. Ensure the relay module operates within its specified ratings to maintain reliability and prevent premature failure.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AQY212FG2S Overview

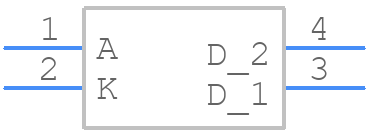

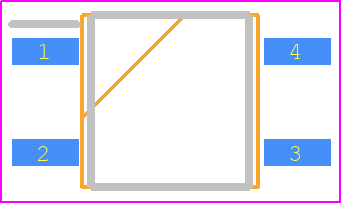

Use the download button to access the AQY212FG2S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQY21,
or try a keyword search, such as Solid State Relays
