AQY221N2M1Y - Panasonic

Description: PANASONIC - AQY221N2M1Y - MOSFET Relay, SPST-NO (1 Form A), AC / DC, 40 V, 120 mA, SON, Surface Mount

Download AQY221N2M1Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

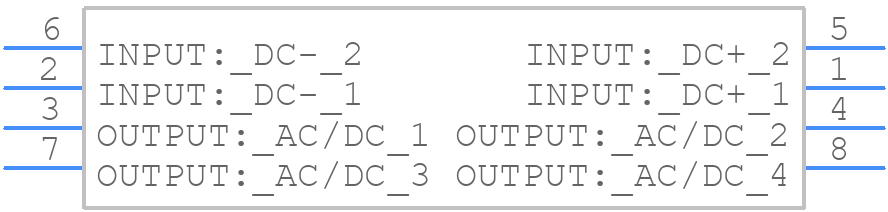

AQY221N2M1Y - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQY221N2M1Y - Panasonic PCB footprint - Other - Other - AQY221N2M1Y
click to zoom
3D Models
AQY221N2M1Y - Panasonic - 3D model - Other - AQY221N2M1Y
click to zoom

AQY221N2M1Y Details

  • Manufacturer Part Number:

    AQY221N2M1Y

  • Part Life Cycle Code:

    Active

  • Package Description:

    SON-4

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.001 A

  • Control Voltage:

    1.14 V

  • Forward Current-Max:

    0.003 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    200 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    12.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    1.4 mm

  • Overall Length:

    2.95 mm

  • Packing Method:

    TR, 7 INCH

  • Surface Mount:

    YES

AQY221N2M1Y Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the AQY221N2M1Y relay is 30 operations per minute.
  • Yes, the AQY221N2M1Y relay can operate in temperatures up to 85°C, but the relay's lifespan may be affected at high temperatures.
  • The minimum load current required for reliable relay operation is 10mA.
  • Yes, the AQY221N2M1Y relay is designed to handle high inrush currents, but the relay's lifespan may be affected by frequent high-inrush current switching.
  • The recommended PCB layout and spacing for the AQY221N2M1Y relay can be found in the Panasonic application note AN13184.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQY221N2M1Y Overview

Use the download button to access the AQY221N2M1Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQY22, or try a keyword search, such as Solid State Relays
