AQY221N2MY - Panasonic

Description: Panasonic SPNO Solid State Relay, Surface Mount, MOSFET, 40 V Maximum Load

Download AQY221N2MY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

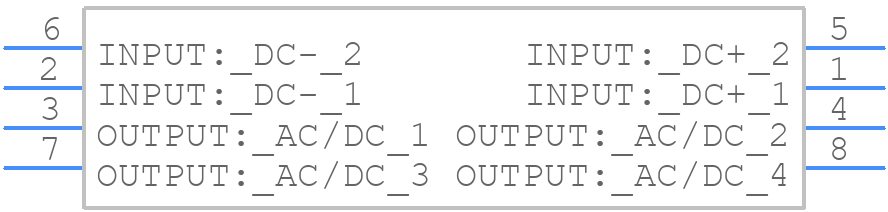

Symbol
AQY221N2MY - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQY221N2MY - Panasonic PCB footprint - Other - Other - AQY221N2MY-3
click to zoom
3D Models
AQY221N2MY - Panasonic - 3D model - Other - AQY221N2MY-3
click to zoom

AQY221N2MY Details

  • Manufacturer Part Number:

    AQY221N2MY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SON-4

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    4

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • Control Current:

    0.001 A

  • Control Voltage:

    1.14 V

  • Forward Current-Max:

    0.003 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    200 V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-state Resistance-Max:

    12.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    1.4 mm

  • Overall Length:

    2.95 mm

  • Packing Method:

    TR, 10 INCH

  • Surface Mount:

    YES

AQY221N2MY Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the AQY221N2MY relay is 30 operations per minute.
  • The AQY221N2MY relay is designed to operate in temperatures ranging from -40°C to 85°C. However, it's recommended to derate the relay's current capacity at high temperatures to ensure reliable operation.
  • To ensure proper driving of the AQY221N2MY relay, a minimum of 5V and 10mA is required for the coil voltage and current, respectively. Additionally, a flyback diode should be used to protect the driving circuit from back-EMF.
  • The AQY221N2MY relay has an expected lifespan of 100,000 to 200,000 operations, depending on the operating conditions and load characteristics.
  • The AQY221N2MY relay is not designed for use in safety-critical applications. It's recommended to use relays with specific safety certifications, such as UL or IEC, for safety-critical applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQY221N2MY Overview

Use the download button to access the AQY221N2MY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQY22, or try a keyword search, such as Solid State Relays
