AQZ202 - Panasonic

Description: Solid State Relays - PCB Mount 3A 60V 4PIN SPST

Download AQZ202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

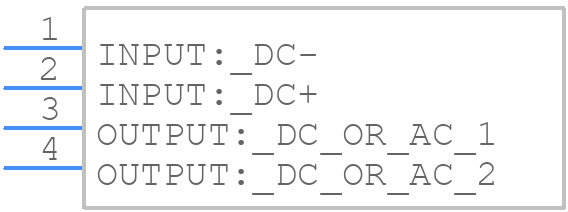

Symbol
AQZ202 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQZ202 - Panasonic PCB footprint - Other - Other - AQZ202-1
click to zoom
3D Models
AQZ202 - Panasonic - 3D model - Other - AQZ202-1
click to zoom

AQZ202 Details

  • Manufacturer Part Number:

    AQZ202

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    3 A

  • On-state Resistance-Max:

    0.18 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    BOX

AQZ202 Frequently Asked Questions (FAQs)

  • Store the AQZ202 in a dry, cool place, away from direct sunlight, with a temperature range of -40°C to 125°C and humidity below 80%.
  • Handle the AQZ202 by the body or pins, avoid touching the leads, and use an anti-static wrist strap or mat to prevent ESD damage.
  • Solder the AQZ202 at a temperature of 250°C (max) for 3 seconds (max) to prevent thermal damage.
  • Yes, the AQZ202 is designed to withstand vibrations up to 10G (10-2000Hz) and can be used in high-vibration environments.
  • Clean the AQZ202 with a soft brush and mild soap solution, avoiding harsh chemicals, ultrasonic cleaning, or high-pressure washing.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQZ202 Overview

Use the download button to access the AQZ202 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQZ20, or try a keyword search, such as Solid State Relays
