Part Image

AQZ205 - Panasonic

Description: Solid State Relays - PCB Mount 2A 100V 4PIN SPST

Download AQZ205 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

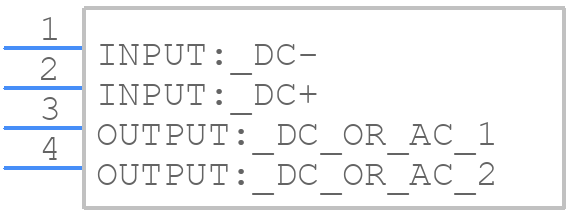

AQZ205 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AQZ205 - Panasonic PCB footprint - Other - Other - AQZ202-1
click to zoom
3D Models
AQZ205 - Panasonic - 3D model - Other - AQZ202-1
click to zoom

AQZ205 Details

  • Manufacturer Part Number:

    AQZ205

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.95.00

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    5.69

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    2500 V

  • Number of Elements:

    1

  • On-State Current-Max:

    2 A

  • On-state Resistance-Max:

    0.34 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Packing Method:

    BOX

  • Terminal Finish:

    NICKEL

AQZ205 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for AQZ205 is -40°C to 125°C.
  • Yes, AQZ205 is designed to operate in humid environments, but it's recommended to follow proper handling and storage procedures to prevent moisture-related issues.
  • The maximum allowable voltage for AQZ205 is 250V AC or 350V DC.
  • To ensure reliability, follow the recommended operating temperature range (-40°C to 125°C), and consider derating the voltage and current according to the datasheet.
  • Yes, AQZ205 is designed to operate in noisy environments, but it's recommended to follow proper PCB design and layout guidelines to minimize electromagnetic interference (EMI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AQZ205 Overview

Use the download button to access the AQZ205 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AQZ20, or try a keyword search, such as Solid State Relays
