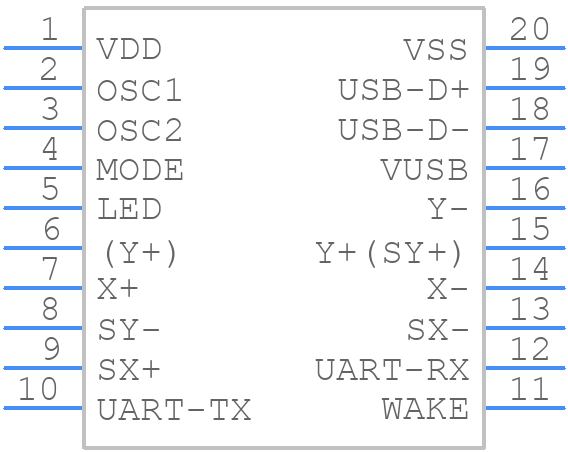

AR1100-I/SO - Microchip

AR1100-I/SO Details

• Manufacturer Part Number:

  AR1100-I/SO

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  SOIC

• Package Description:

  SOIC-20

• Pin Count:

  20

• Manufacturer Package Code:

  SOIC-20

• Country Of Origin:

  Malaysia, Philippines, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  3

• Additional Feature:

  ALSO OPERATES AT 5V SUPPLY

• JESD-30 Code:

  R-PDSO-G20

• JESD-609 Code:

  e3

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Screening Level:

  TS 16949

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max:

  3.465 V

• Supply Voltage-Min:

  3.135 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  RESISTIVE TOUCH SCREEN CONTROLLERS
