Qualcomm provides a recommended PCB layout guide for the AR8031-AL1A, which includes guidelines for component placement, routing, and thermal management. It's essential to follow this guide to ensure optimal performance and reliability.
The AR8031-AL1A supports various network topologies, including star, bus, and ring configurations. Configuration is done through the device's registers and can be achieved using Qualcomm's software development kit (SDK) or third-party network configuration tools.
The AR8031-AL1A supports cable lengths up to 100 meters, depending on the specific Ethernet standard being used (e.g., 10BASE-T, 100BASE-TX, or 1000BASE-T). However, it's essential to consider factors like cable quality, noise, and signal attenuation when designing your system.
The AR8031-AL1A has built-in power management features, including Wake-on-LAN (WOL) and Energy-Efficient Ethernet (EEE). To implement power management, you'll need to configure the device's registers and use Qualcomm's SDK or third-party power management tools.
The AR8031-AL1A has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, including heat sinks, thermal pads, and airflow management. Qualcomm provides thermal design guidelines in the device's datasheet and application notes.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AR8031-AL1A Overview

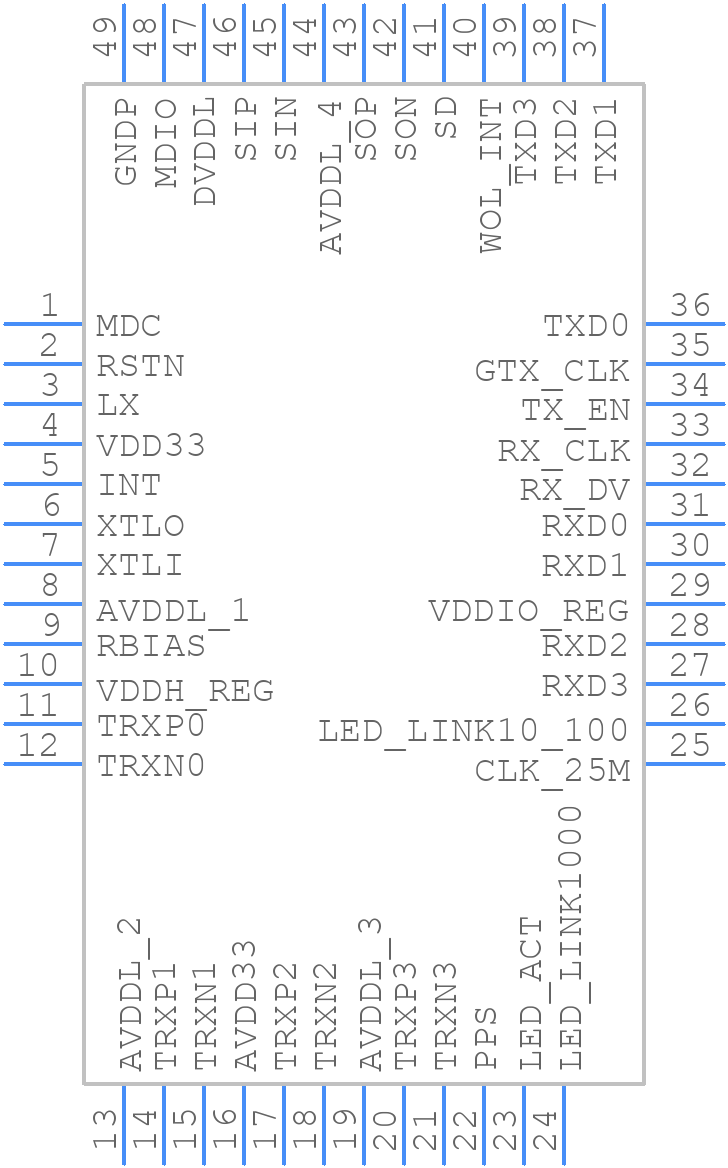

Use the download button to access the AR8031-AL1A schematic symbol, PCB footprint, and 3D model.
