Qualcomm provides a recommended PCB layout guide for the AR8033-AL1A, which includes guidelines for component placement, routing, and thermal management. It's essential to follow this guide to ensure optimal performance and reliability.
The AR8033-AL1A supports multiple Ethernet speeds, including 10/100/1000 Mbps. Configuration can be done through the device's registers or using Qualcomm's software development kit (SDK). The SDK provides APIs and examples for configuring the device for different Ethernet speeds.
The power consumption of the AR8033-AL1A varies depending on the operating mode and Ethernet speed. According to the datasheet, the typical power consumption is around 350-400 mW in active mode and 10-20 mW in standby mode. However, actual power consumption may vary depending on the specific application and PCB design.
The AR8033-AL1A supports VLAN tagging and priority queuing through its built-in hardware accelerators. Qualcomm provides software development kits (SDKs) and documentation that explain how to implement these features using the device's registers and APIs.
The AR8033-AL1A has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to follow Qualcomm's thermal management guidelines, which include using thermal pads, heat sinks, and thermal interfaces to dissipate heat effectively.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AR8033-AL1A Overview

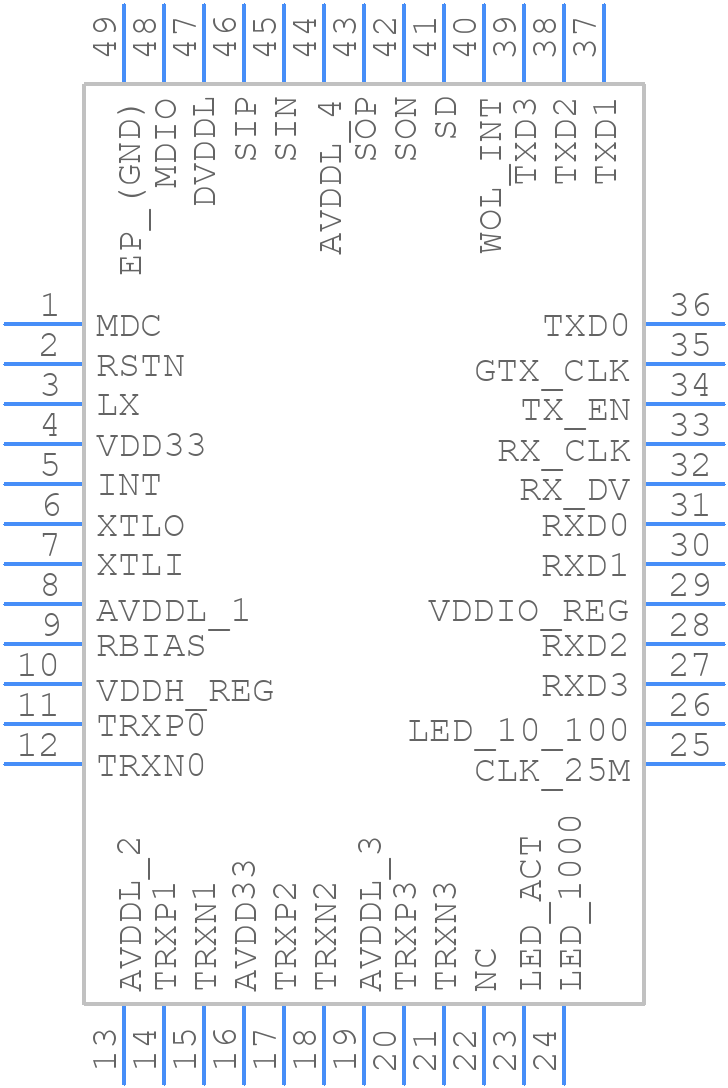

Use the download button to access the AR8033-AL1A schematic symbol, PCB footprint, and 3D model.
