ARD-PRO-MINI-5 footprint, schematic symbol and 3D model by Gravitech

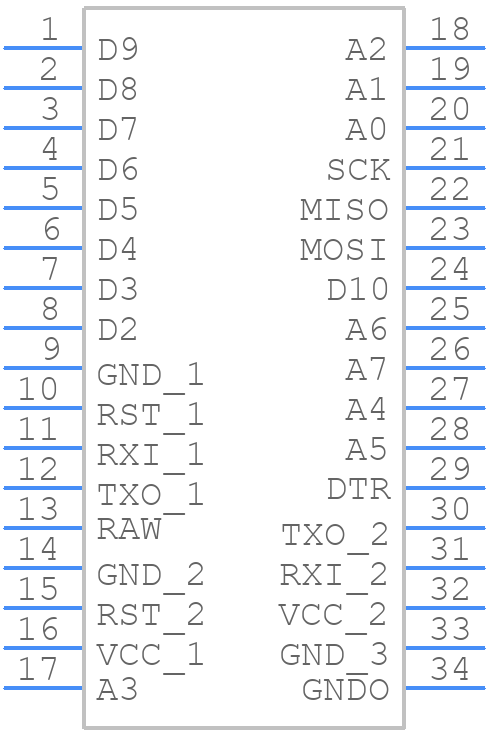

Symbol

click to zoom

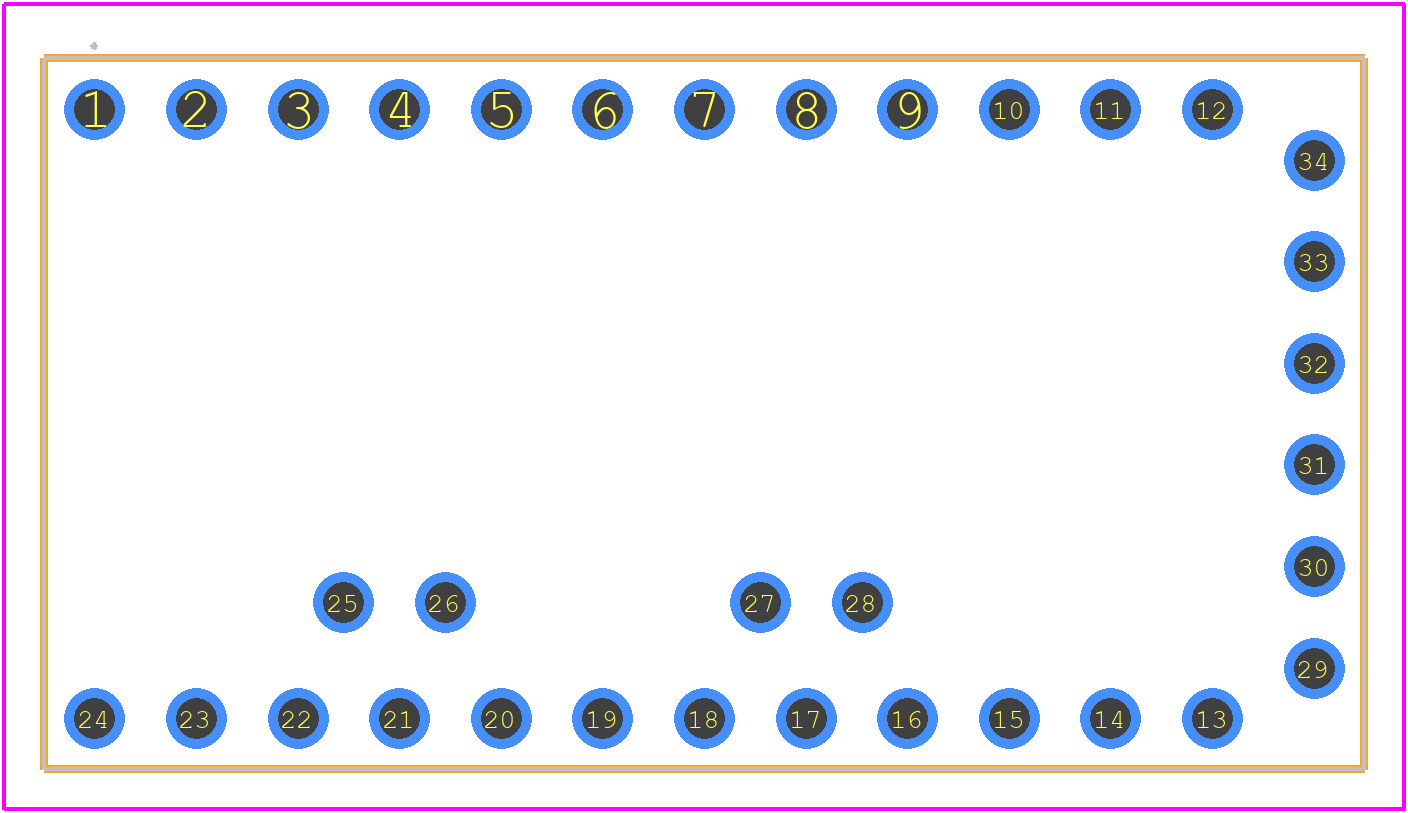

PCB Footprints

ARD-PRO-MINI-5 - Gravitech PCB footprint - Other - Other - Arduino Pro Mini

click to zoom

3D Models

ARD-PRO-MINI-5 - Gravitech - 3D model - Other - Arduino Pro Mini

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARD-PRO-MINI-5
Part Number ARD-PRO-MINI-5
Manufacturer Gravitech
Pin Count 34
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - Arduino Pro Mini
Released Date Mar 23, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ARD-PRO-MINI-5 Details

Manufacturer Part Number:
ARD-PRO-MINI-5
Manufacturer:
Gravitech

Trust Checks

Expert Contribution

System Verified

Community Approved

ARD-PRO-MINI-5 Overview

Use the download button to access the ARD-PRO-MINI-5 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ARD-P, or try a keyword search, such as Ceramic Capacitors
