ARE1012 - Panasonic

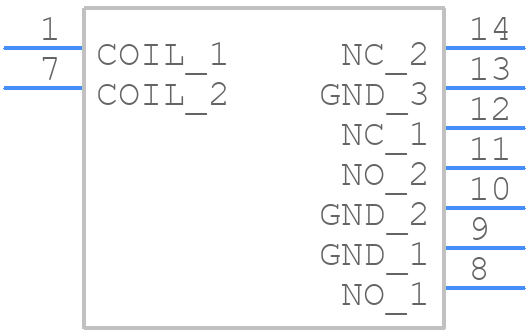

ARE1012 Details

• Manufacturer Part Number:

  ARE1012

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Additional Feature:

  RELEASE TIME WITHOUT DIODE

• Body Breadth:

  11.2 mm

• Body Height:

  8.9 mm

• Body Length or Diameter:

  20.2 mm

• Characteristic Impedance:

  50 Ω

• Coil Current(DC)-Max:

  0.017 A

• Coil Operate Voltage(DC):

  9 V

• Coil Power:

  200 mW

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  720 Ω

• Coil Voltage(DC)-Max:

  12 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  0.5 A

• Contact (DC) Max Rating R Load:

  .5A@30VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  300000 Cycle(s)

• End Contact Plating:

  GOLD

• Input Power-Max:

  10 W

• Input Switching Control Type:

  Random

• Insertion Loss-Max:

  0.7 dB

• Insulation Resistance:

  100000000 Ω

• Isolation-Max:

  30 dB

• Mounting Feature:

  THROUGH HOLE-STRAIGHT MOUNT

• Number of Terminals:

  9

• Operate Time:

  10 ms

• Operating Frequency-Max:

  2600 MHz

• Operating Frequency-Min:

  900 MHz

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BULK

• Physical Dimension:

  20.2mm x 11.2mm x 8.9mm

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  RF RELAY

• Release Time:

  5 ms

• Surface Mount:

  NO

• Switching Time:

  15 ms

• Terminal Length:

  0.002999745999491999 inch

• Termination Type:

  SOLDER

• VSWR:

  1.7
