ARG81801KESJSR - Allegro Microsystems

Description: Automotive Wide Vin 3A, 2.4Mhz Asynchronous Buck Regulator

Download ARG81801KESJSR Model

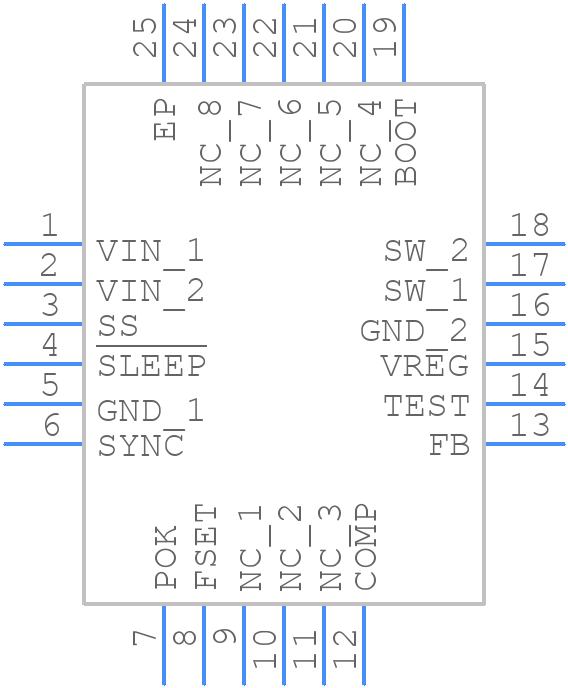

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ARG81801KESJSR - Allegro Microsystems PCB footprint - Other - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom
3D Models
ARG81801KESJSR - Allegro Microsystems  - 3D model - Other -  Package ES, 24-pin wettable flank QFN with exposed thermal pad
click to zoom

ARG81801KESJSR Details

  • Manufacturer Part Number:

    ARG81801KESJSR

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    5.3 V

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Nom (Vsup):

    5.3 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

ARG81801KESJSR Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The choice of output filter components (Rf, Cf, and Lf) depends on the specific application requirements. Allegro provides a filter design tool on their website, which helps engineers select the optimal component values based on the desired bandwidth, noise reduction, and output impedance.
  • Although the datasheet specifies a recommended operating voltage range, the absolute maximum voltage on the VCC pin is 7.5V. Exceeding this voltage may damage the device.
  • The ARG81801KESJSR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output pin and ground, and set the overcurrent threshold (OCT) pin to the desired level. The device will then limit the output current to prevent damage in case of an overload.
  • The thermal resistance (RθJA) of the ARG81801KESJSR package is approximately 45°C/W. This information is essential for thermal management and heat sink design.
