ARJ-102S-T - ABRACON

Description: Modular Connectors / Ethernet Connectors CONN MAGJACK 1 PORT 1000 BASE , 1500 VRMs , -40°C ~ 85°C

Download ARJ-102S-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

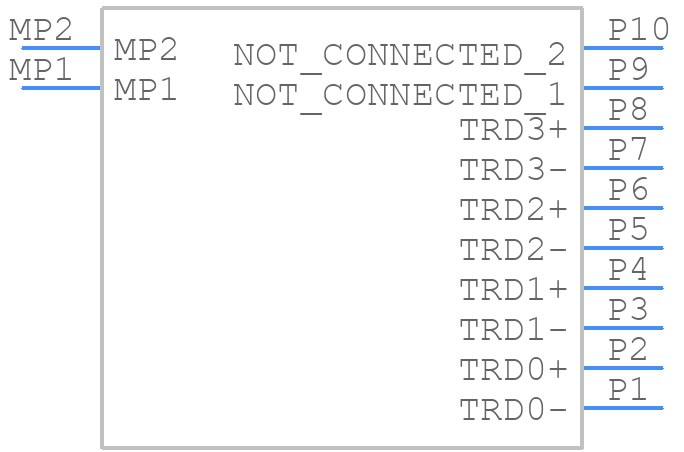

ARJ-102S-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ARJ-102S-T - ABRACON PCB footprint - Other - Other - ARJ-102S-T-1
click to zoom
3D Models
ARJ-102S-T - ABRACON - 3D model - Other - ARJ-102S-T-1
click to zoom

ARJ-102S-T Details

  • Manufacturer Part Number:

    ARJ-102S-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7.45

  • Body Breadth:

    0.616 inch

  • Body Depth:

    0.907 inch

  • Body Length:

    0.661 inch

  • Connector Type:

    RJ CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    8
