ARJ-146 - ABRACON

Description: Modular Connectors / Ethernet Connectors PoE 15W, 48V 350mA IL -1.2dB

Download ARJ-146 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

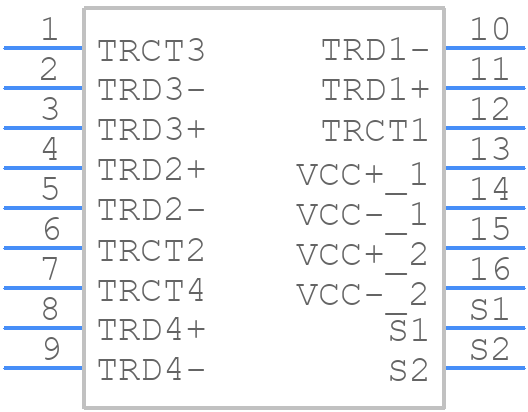

ARJ-146 - ABRACON - PCB symbol
click to zoom
PCB Footprints

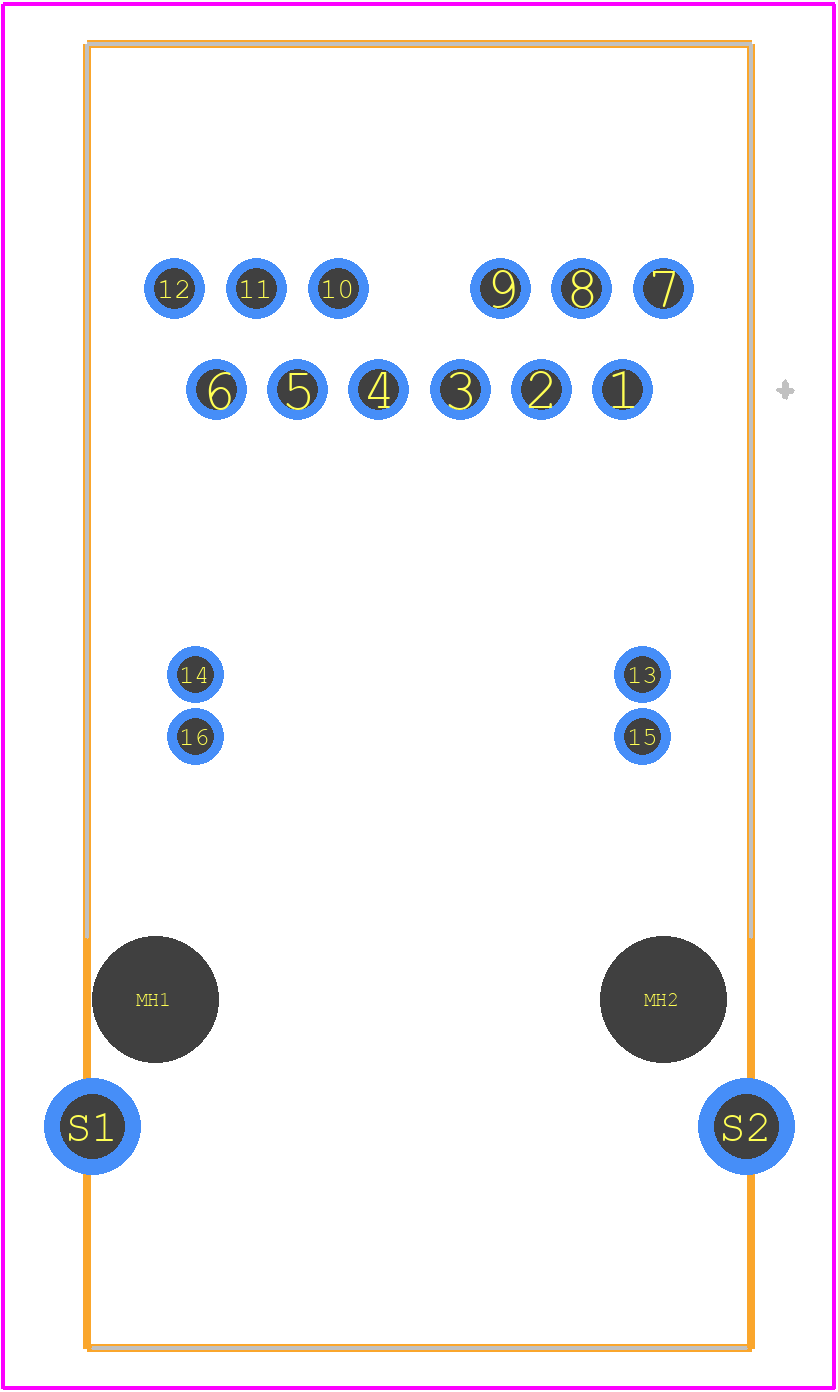

ARJ-146 - ABRACON PCB footprint - Other - Other - ARJ-146-3
click to zoom
3D Models
ARJ-146 - ABRACON - 3D model - Other - ARJ-146-3
click to zoom

ARJ-146 Details

  • Manufacturer Part Number:

    ARJ-146

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    8

  • Board Mounting Option:

    HOLE 0.124

  • Body Breadth:

    0.531 inch

  • Body Depth:

    1.283 inch

  • Body Length:

    0.653 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    MAGNETIC RJ45

  • Durability:

    5000 Cycles

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    MOUNTING FLANGE

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    4

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    70 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Terminal Length:

    0.138 inch

  • Terminal Pitch:

    2.03 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

ARJ-146 Frequently Asked Questions (FAQs)

  • Abracon recommends a symmetrical layout with the crystal oscillator placed near the center of the PCB, and the traces should be as short as possible to minimize noise and interference.
  • Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the pads. Avoid applying excessive heat or pressure, which can damage the device.
  • The ARJ-146 is rated for operation from -40°C to +85°C, but it's recommended to operate within the -20°C to +70°C range for optimal performance and reliability.
  • Yes, the ARJ-146 is designed to withstand vibrations up to 10G, but it's recommended to follow proper mounting and soldering techniques to ensure reliable operation.
  • Store the ARJ-146 in its original packaging or a similar ESD-protective package, and avoid exposing it to extreme temperatures, humidity, or physical stress during shipping.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARJ-146 Overview

Use the download button to access the ARJ-146 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ-1, or try a keyword search, such as Telecom and Datacom Connectors
