- Part Number ARJ-148
- Manufacturer ABRACON
- Pin Count 16
- Part Category Connector
- Package Category Other

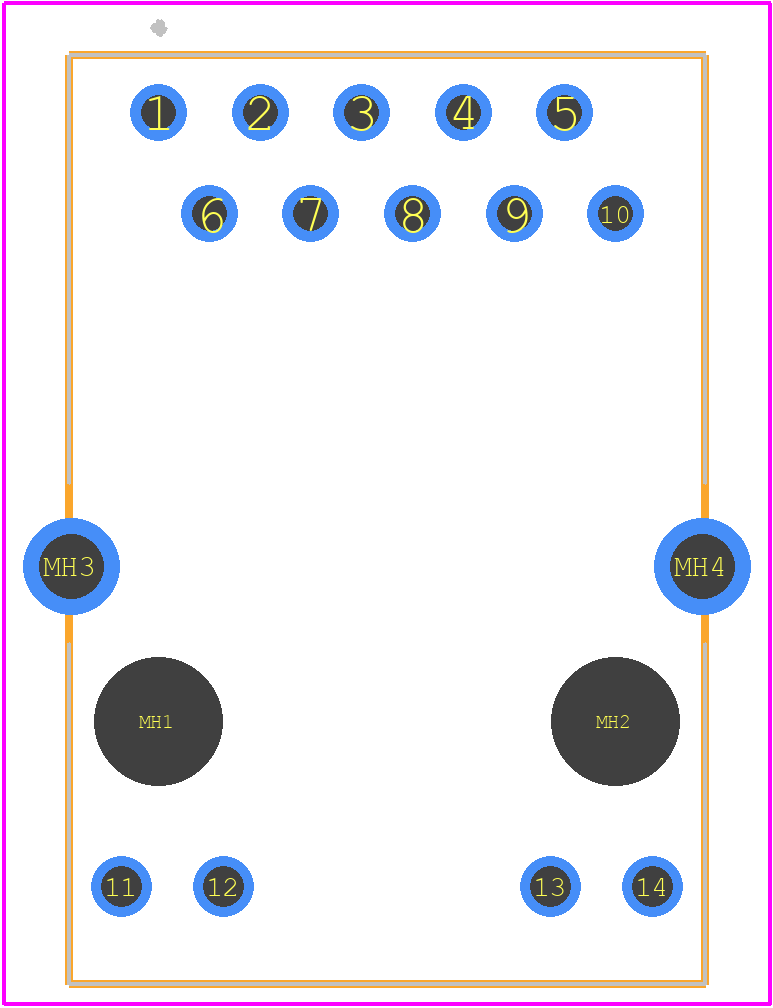

- Footprint Name Other - ARJ-148-1
- Released Date Dec 1, 2019
- Last Modified Date Mar 23, 2026 12:08 PM UTC
- Pinout / Pin List Click Here (Member Only)
ARJ-148 Details
-
Manufacturer Part Number:
ARJ-148
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
14 Weeks
-
Manufacturer:
Abracon Corporation
-
Board Mounting Option:
SPLIT BOARD LOCK
-
Body Breadth:
0.913 inch
-
Body Depth:
0.665 inch
-
Body Length:
0.625 inch
ARJ-148 Frequently Asked Questions (FAQs)
-
Abracon recommends a symmetrical layout with the crystal oscillator placed near the center of the PCB, and the traces should be as short as possible to minimize noise and interference.
-
Use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder to the pads. Avoid applying excessive heat or pressure, which can damage the device.
-
The ARJ-148 can operate from -40°C to +85°C, but the frequency stability may vary depending on the temperature. Consult the datasheet for specific temperature-related specifications.
-
Yes, the ARJ-148 is designed to withstand vibrations up to 10G, but it's essential to ensure the device is properly mounted and secured to the PCB to prevent damage or dislodging.
-
Check the power supply voltage, ensure proper soldering, and verify the PCB layout. If issues persist, consult the datasheet or contact Abracon's technical support for assistance.
Trust Checks
Expert Contribution
System Verified
Community Approved
ARJ-148 Overview

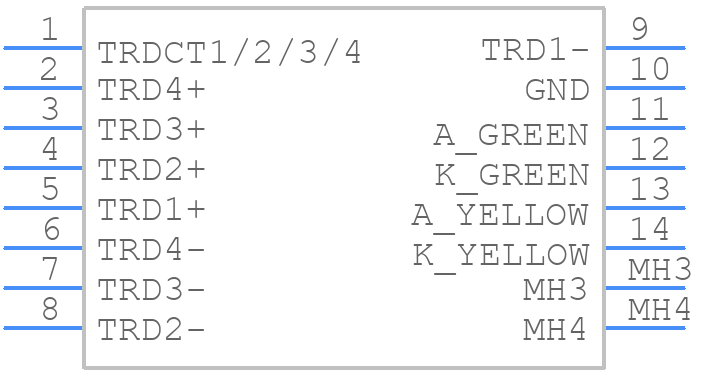

Use the download button to access the ARJ-148 schematic symbol, PCB footprint, and 3D model.
