ARJ-150A - ABRACON

Description: Modular Connectors / Ethernet Connectors RJ45 10/100/1000 Base-T RJ45 and 2 USB Combo N/A Through Hole

Download ARJ-150A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

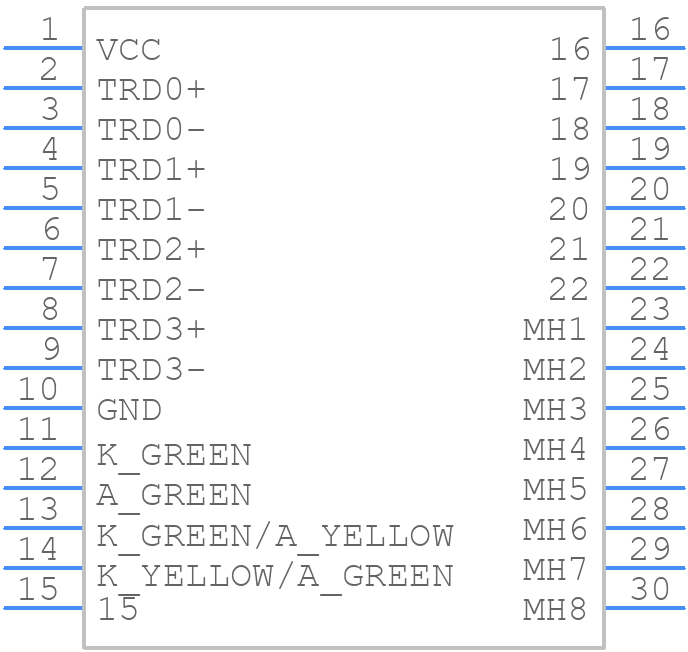

ARJ-150A - ABRACON - PCB symbol
click to zoom
PCB Footprints

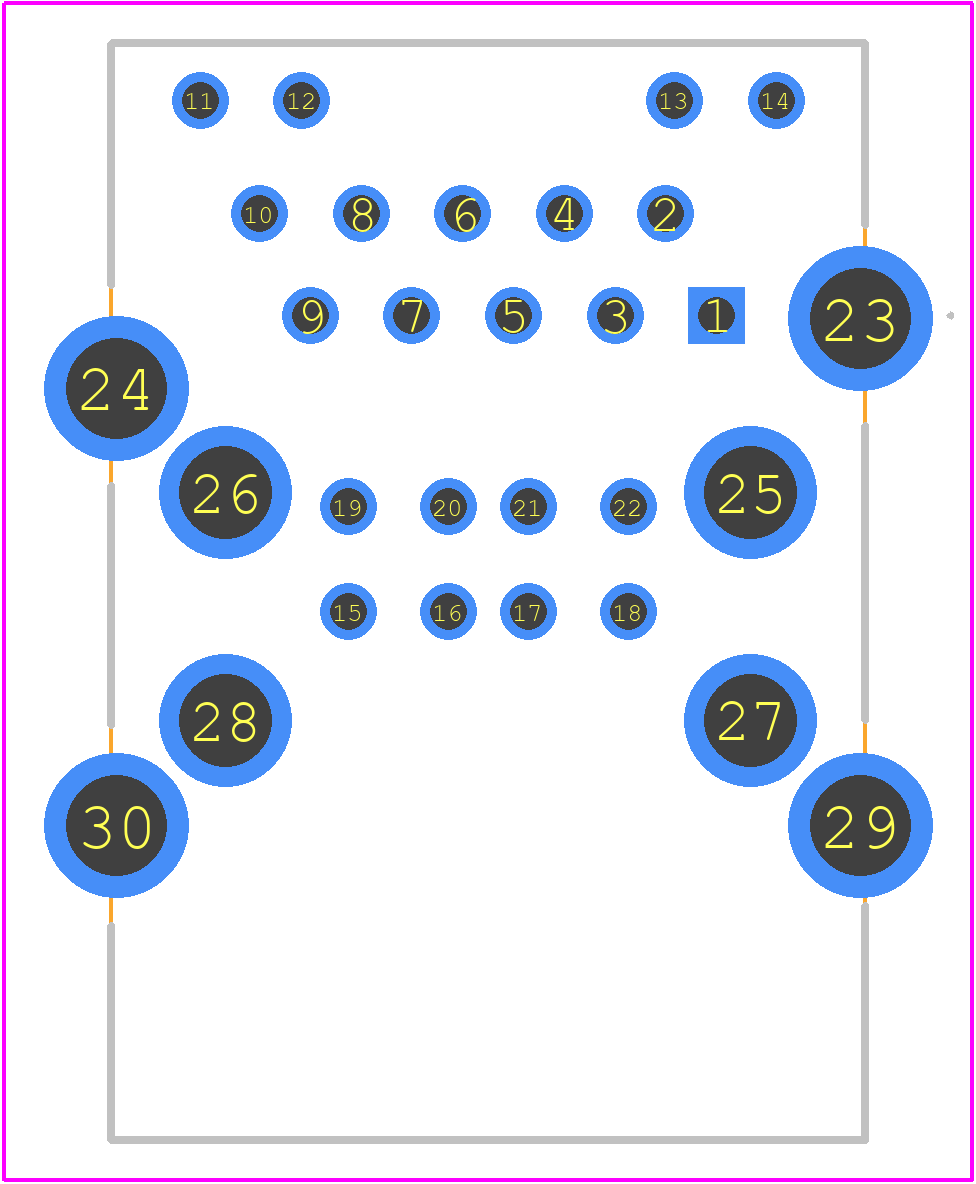

ARJ-150A - ABRACON PCB footprint - Other - Other - ARJ-150A-1
click to zoom
3D Models
ARJ-150A - ABRACON - 3D model - Other - ARJ-150A-1
click to zoom

ARJ-150A Details

  • Manufacturer Part Number:

    ARJ-150A

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Abracon Corporation

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARJ-150A Overview

Use the download button to access the ARJ-150A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ-1, or try a keyword search, such as Telecom and Datacom Connectors
