ARJ-202 - ABRACON

Description: Modular Connectors / Ethernet Connectors 1000 BASE-T 2 ports W/magnetics

Download ARJ-202 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

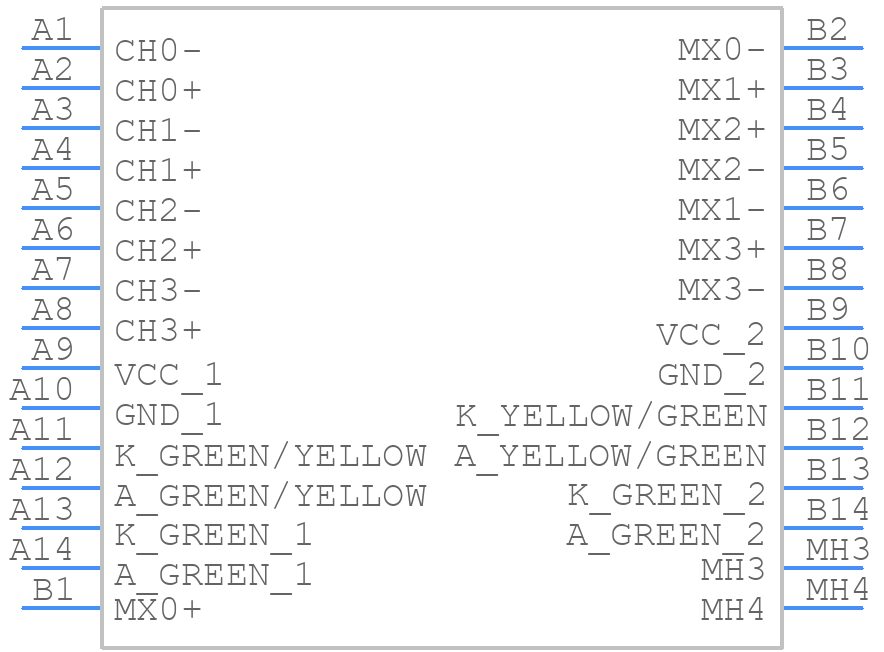

ARJ-202 - ABRACON - PCB symbol
click to zoom
PCB Footprints

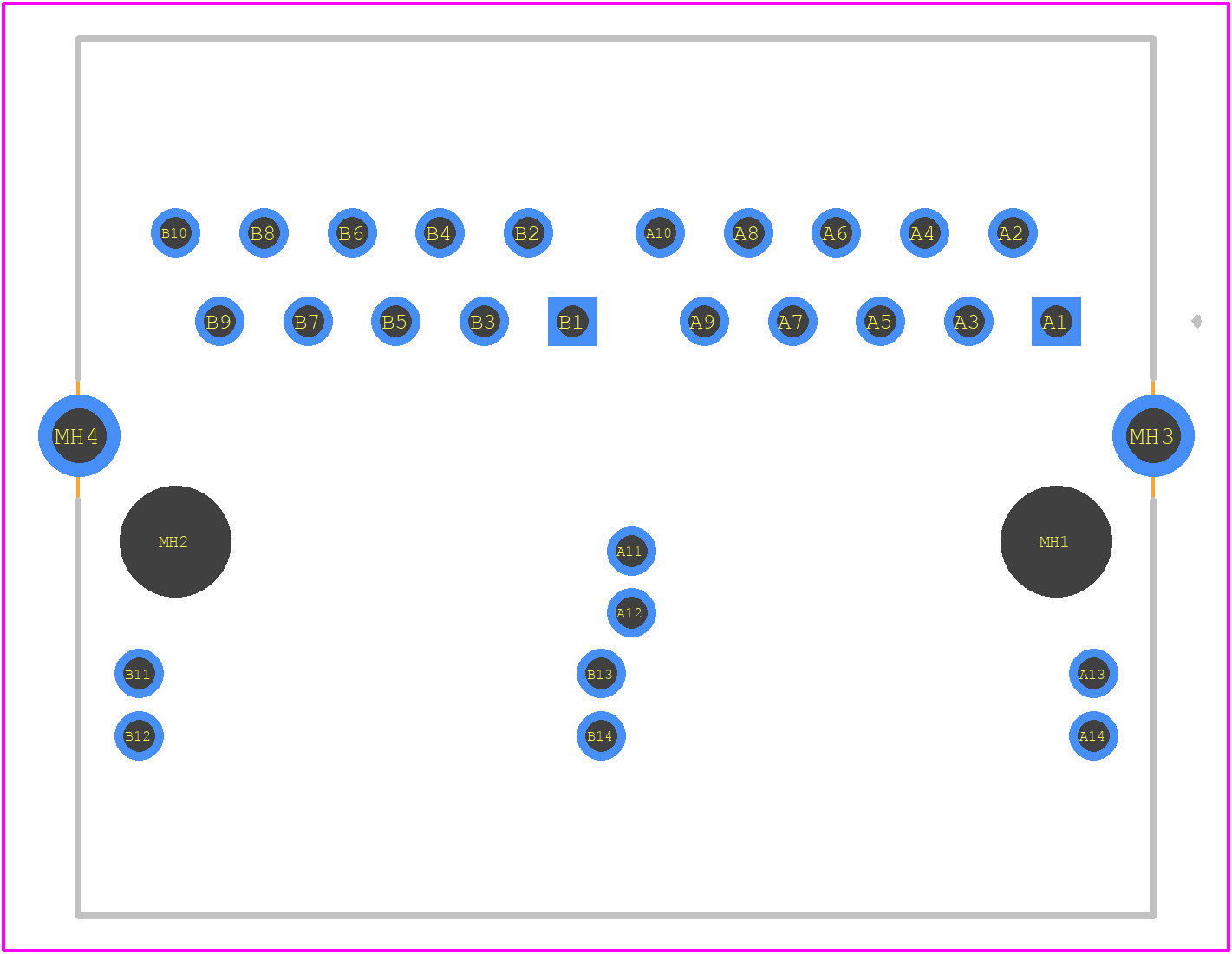

ARJ-202 - ABRACON PCB footprint - Other - Other - ARJ-202-3
click to zoom
3D Models
ARJ-202 - ABRACON - 3D model - Other - ARJ-202-3
click to zoom

ARJ-202 Details

  • Manufacturer Part Number:

    ARJ-202

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.533 inch

  • Body Depth:

    0.996 inch

  • Body Length:

    1.22 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    TELCOM, MODULAR

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    STAGGERED

  • Terminal Length:

    0.129 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    16

ARJ-202 Frequently Asked Questions (FAQs)

  • Abracon recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a microstrip or stripline design for the transmission lines to minimize signal loss and radiation.
  • Use a reflow soldering process with a peak temperature of 260°C (500°F) and a dwell time of 20-30 seconds. Ensure the PCB is clean and free of oxidation, and use a solder paste with a melting point of 217°C (423°F) or higher.
  • The ARJ-202 is rated for operation from -40°C to +85°C (-40°F to +185°F), but it's recommended to derate the frequency and power handling at higher temperatures to ensure reliability and prevent thermal runaway.
  • Yes, the ARJ-202 is designed to withstand vibrations up to 10g and shocks up to 100g, but it's recommended to follow Abracon's guidelines for mounting and securing the device to ensure reliable operation in harsh environments.
  • Check the PCB layout and design for any errors or omissions, ensure proper soldering and assembly, and verify the input power and signal levels. Use a spectrum analyzer or network analyzer to diagnose frequency drift or signal loss issues.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARJ-202 Overview

Use the download button to access the ARJ-202 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ-2, or try a keyword search, such as Telecom and Datacom Connectors
