The recommended storage condition for the ARJ11B-MBSAO-A-B-ELU2 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 85°C (-40°F to 185°F) and humidity below 80%.
Yes, the ARJ11B-MBSAO-A-B-ELU2 is designed to withstand high-vibration environments, with a vibration frequency range of 10 Hz to 2 kHz and an acceleration of 10 G.
Yes, the ARJ11B-MBSAO-A-B-ELU2 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) and a soldering process time of 3 minutes.
The recommended PCB layout and land pattern for the ARJ11B-MBSAO-A-B-ELU2 can be found in the Abracon Corporation's application note or datasheet, which provides detailed guidelines for optimal PCB design and assembly.
Yes, the ARJ11B-MBSAO-A-B-ELU2 is AEC-Q200 qualified, making it suitable for use in automotive applications, including infotainment systems, navigation systems, and advanced driver-assistance systems (ADAS).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJ11B-MBSAO-A-B-ELU2 Overview

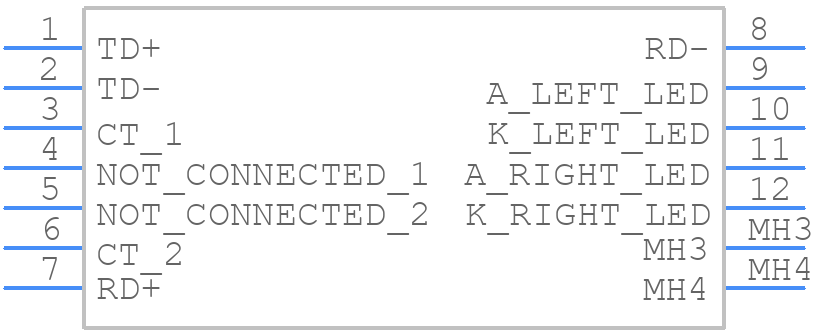

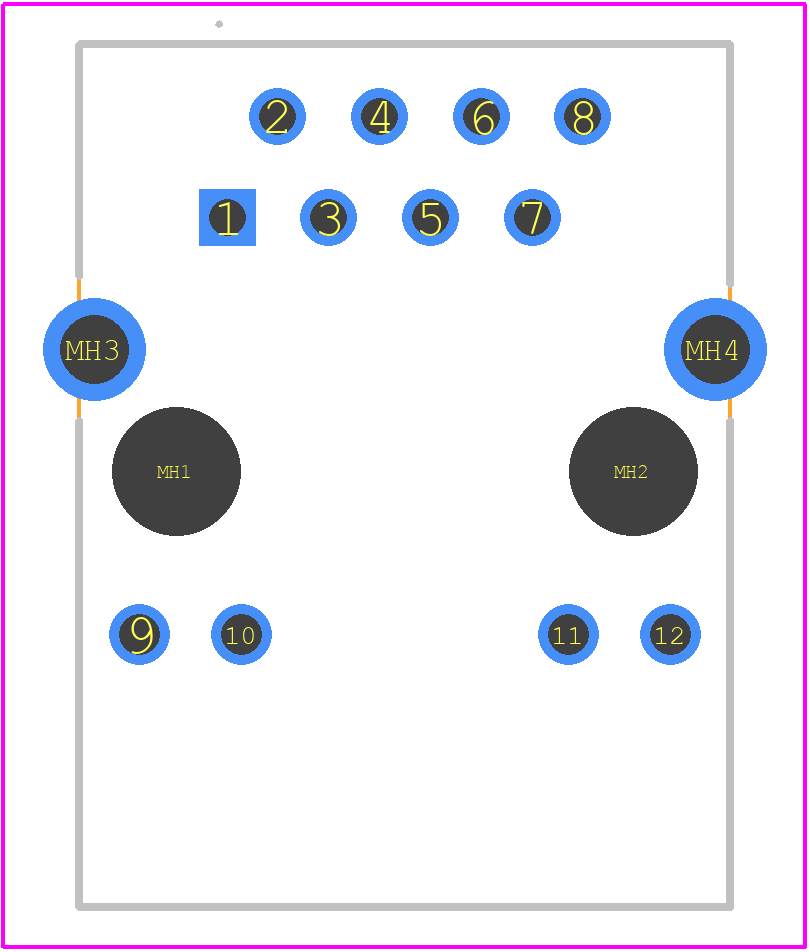

Use the download button to access the ARJ11B-MBSAO-A-B-ELU2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ11,
or try a keyword search, such as Telecom and Datacom Connectors
