ARJ11E-MCSA-A-B-EM2 footprint, schematic symbol and 3D model by ABRACON

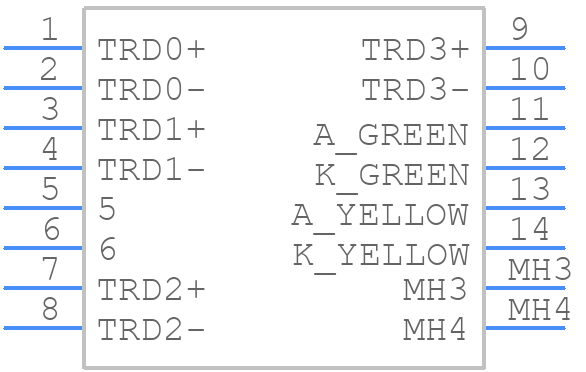

Symbol

click to zoom

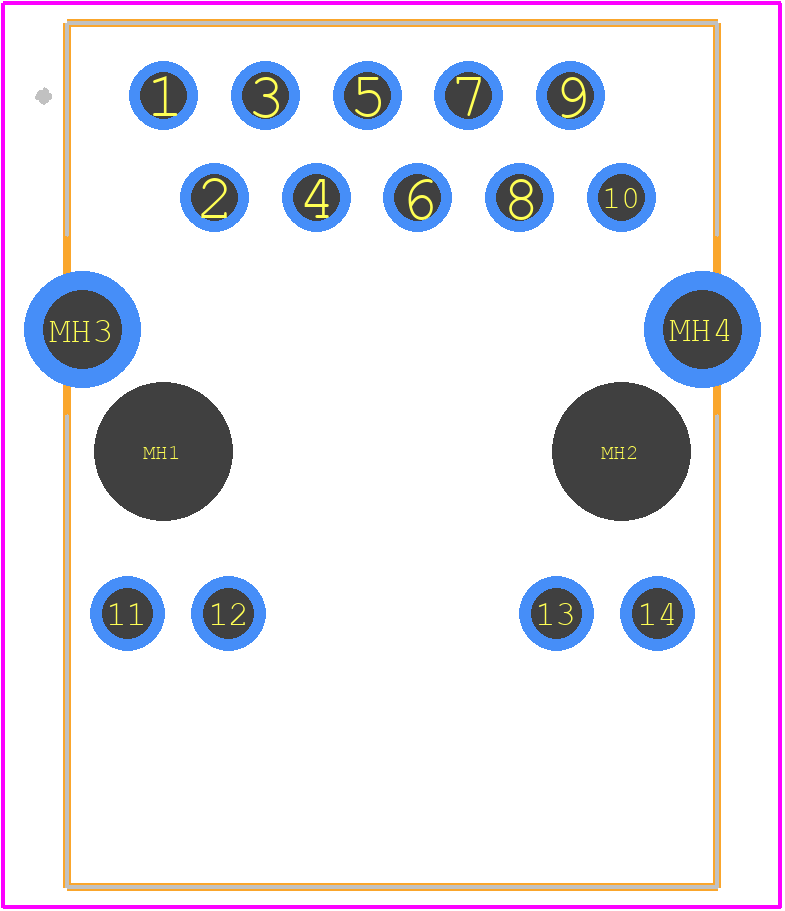

PCB Footprints

ARJ11E-MCSA-A-B-EM2 - ABRACON PCB footprint - Other - Other - ARJ11E-MCSA-A-B-EM2-3

click to zoom

3D Models

ARJ11E-MCSA-A-B-EM2 - ABRACON - 3D model - Other - ARJ11E-MCSA-A-B-EM2-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARJ11E-MCSA-A-B-EM2
Part Number ARJ11E-MCSA-A-B-EM2
Manufacturer ABRACON
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - ARJ11E-MCSA-A-B-EM2-3
Released Date May 17, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ARJ11E-MCSA-A-B-EM2 Details

Manufacturer Part Number:
ARJ11E-MCSA-A-B-EM2
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
16 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
7.57
Additional Feature:
SHEILDED
Board Mounting Option:
PEG
Body Breadth:
0.544 inch
Body Depth:
0.85 inch
Body Length:
0.64 inch
Body/Shell Style:
JACK
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
MAGNETIC RJ45
Empty Shell:
NO
Filter Feature:
YES
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
70 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.54 mm
Polarization Key:
POLARIZED HOUSING
Terminal Length:
0.129 inch
Termination Type:
SOLDER
Total Number of Contacts:
8

ARJ11E-MCSA-A-B-EM2 Frequently Asked Questions (FAQs)

Abracon recommends storing the ARJ11E-MCSA-A-B-EM2 in a dry, cool place with a temperature range of 10°C to 30°C and relative humidity of 60% or less.
Yes, the ARJ11E-MCSA-A-B-EM2 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and soldering to prevent damage.
Yes, the ARJ11E-MCSA-A-B-EM2 is compatible with lead-free soldering processes. Abracon recommends following the recommended soldering profile and temperature range to ensure reliable assembly.
The typical lead time for delivery of the ARJ11E-MCSA-A-B-EM2 varies depending on the region, quantity, and availability. It's recommended to check with Abracon's authorized distributors or sales representatives for the most up-to-date lead time information.
Yes, the ARJ11E-MCSA-A-B-EM2 is AEC-Q200 qualified, making it suitable for use in automotive applications. However, it's essential to ensure that the device meets the specific requirements of the automotive system and follows the recommended design and testing guidelines.
