ARJ11G-MASA-A-B-ELT2 footprint, schematic symbol and 3D model by ABRACON

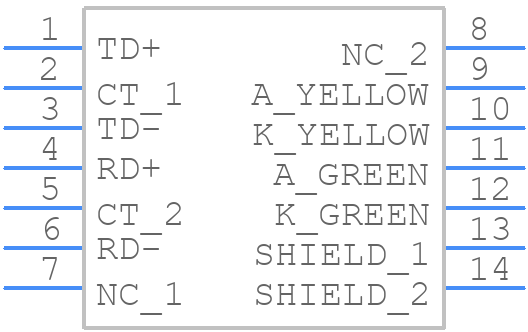

Symbol

click to zoom

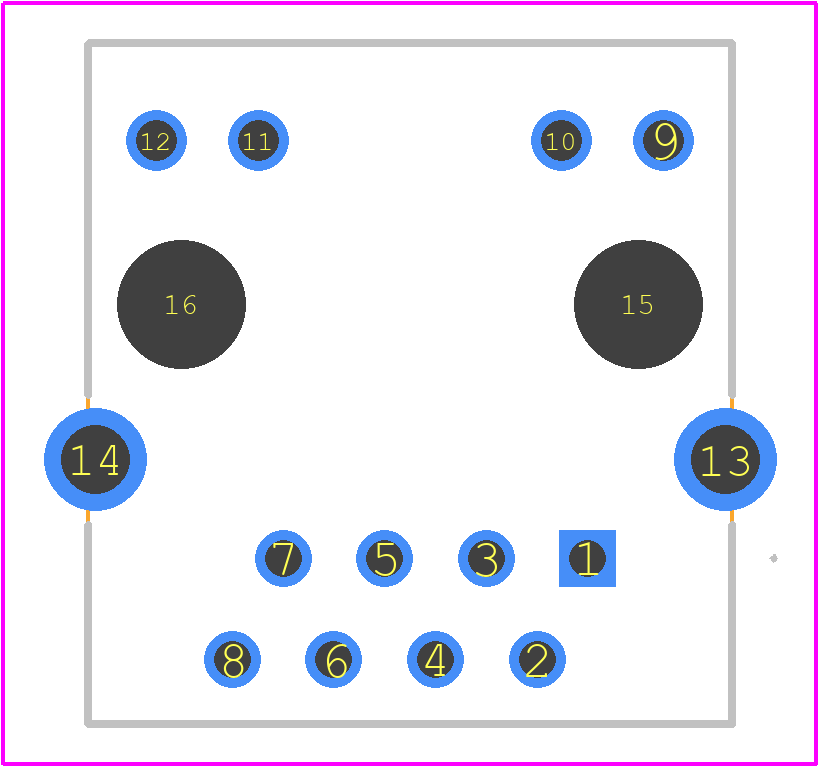

PCB Footprints

ARJ11G-MASA-A-B-ELT2 - ABRACON PCB footprint - Other - Other - ARJ11G-MASA-A-B-ELT2-4

click to zoom

3D Models

ARJ11G-MASA-A-B-ELT2 - ABRACON - 3D model - Other - ARJ11G-MASA-A-B-ELT2-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARJ11G-MASA-A-B-ELT2
Part Number ARJ11G-MASA-A-B-ELT2
Manufacturer ABRACON
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - ARJ11G-MASA-A-B-ELT2-4
Released Date Feb 2, 2018
Last Modified Date Aug 28, 2025 11:52 AM UTC
Pinout / Pin List Click Here (Member Only)

ARJ11G-MASA-A-B-ELT2 Details

Manufacturer Part Number:
ARJ11G-MASA-A-B-ELT2
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
16 Weeks
Manufacturer:
Abracon Corporation
Board Mounting Option:
PEG
Body Breadth:
0.669 inch
Body Depth:
0.663 inch
Body Length:
0.634 inch
Body/Shell Style:
JACK
Connector Type:
RJ CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
MAGNETIC RJ45
Empty Shell:
NO
Filter Feature:
YES
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.54 mm
Plating Thickness:
6u inch
Polarization Key:
POLARIZED HOUSING
Terminal Length:
0.126 inch
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
8

ARJ11G-MASA-A-B-ELT2 Frequently Asked Questions (FAQs)

The recommended land pattern for the ARJ11G-MASA-A-B-ELT2 can be found in the Abracon Corporation's application note or by contacting their technical support team. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent damage to the component.
During reflow soldering, it's crucial to follow the recommended temperature profile and handling procedures to prevent damage to the component. Abracon Corporation provides guidelines for reflow soldering in their application notes or through technical support.
The maximum operating temperature range for the ARJ11G-MASA-A-B-ELT2 is typically specified in the datasheet. However, it's essential to note that the component's performance may degrade or be affected by extreme temperatures. Consult the datasheet or contact Abracon Corporation's technical support for specific temperature range information.
The ARJ11G-MASA-A-B-ELT2 is designed to operate in various environments, but high-vibration environments may affect its performance. Consult Abracon Corporation's technical support or application notes for guidance on using the component in high-vibration environments.
To prevent damage and ensure the component's reliability, it's essential to follow proper storage and handling procedures. Abracon Corporation provides guidelines for storage and handling in their application notes or through technical support.

Trust Checks

Community Provided

System Verified

Community Approved

ARJ11G-MASA-A-B-ELT2 Overview

Use the download button to access the ARJ11G-MASA-A-B-ELT2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ARJ11, or try a keyword search, such as Telecom and Datacom Connectors
