A good PCB layout for the ARJ20A24 should ensure that the input and output capacitors are placed close to the IC, and the power traces are wide and short to minimize inductance. Additionally, a solid ground plane and proper decoupling can help reduce noise and improve stability.
The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic or electrolytic capacitor with a low ESR can be used. The capacitance value should be chosen based on the desired output ripple and stability.
The maximum ambient temperature for the ARJ20A24 is 85°C, but it can be derated to 70°C for high-reliability applications. It's essential to ensure proper heat dissipation and thermal management to prevent overheating.
Yes, the ARJ20A24 is designed to withstand vibrations up to 10G. However, it's essential to ensure that the PCB is properly secured and the components are firmly attached to prevent damage or dislodging.
Common issues with the ARJ20A24 can be troubleshooted by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the PCB layout is optimal. Also, check for any signs of overheating, such as excessive temperature rise or thermal shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJ20A24 Overview

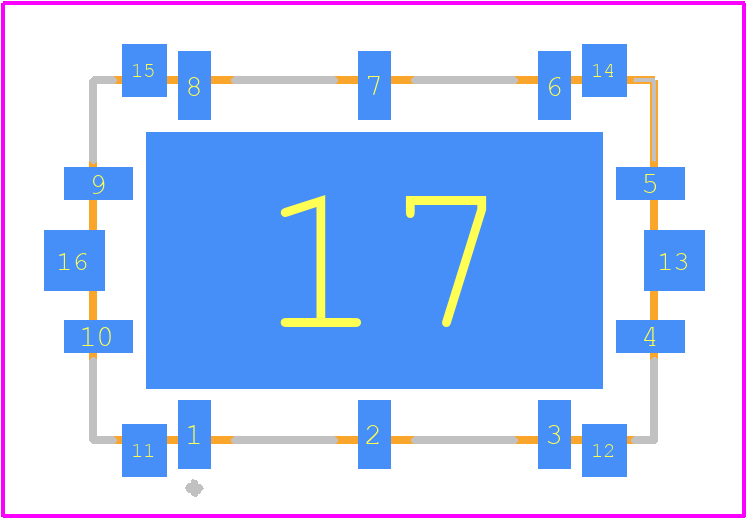

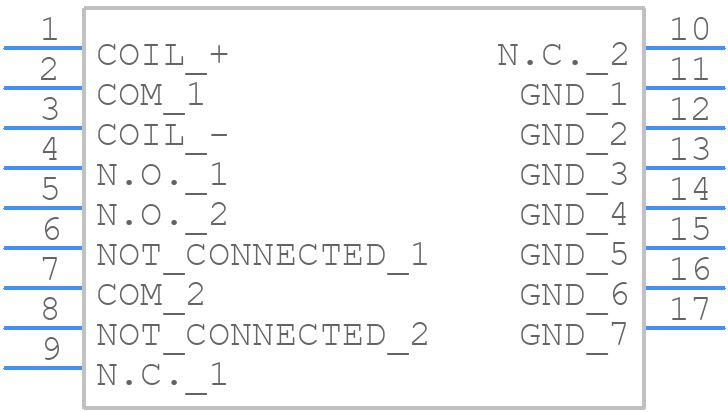

Use the download button to access the ARJ20A24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJ20,
or try a keyword search, such as RF Relays
