ARJ22A03X - Panasonic

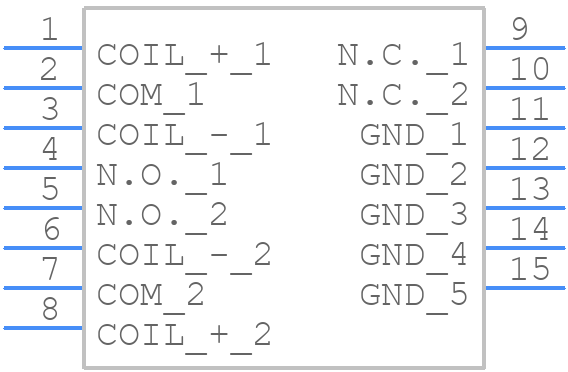

ARJ22A03X Details

• Manufacturer Part Number:

  ARJ22A03X

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  8.45

• Body Breadth:

  9 mm

• Body Height:

  8.2 mm

• Body Length or Diameter:

  14 mm

• Characteristic Impedance:

  50 Ω

• Coil Current(DC)-Max:

  0.05 A

• Coil Operate Voltage(DC):

  2.25 V

• Coil Power:

  150 mW

• Coil Release Voltage(DC):

  2.25 V

• Coil Resistance:

  60 Ω

• Coil Voltage(DC)-Max:

  3 V

• Coil Voltage-Nom:

  3 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  0.3 A

• Contact (DC) Max Power Rating R Load:

  1W@30VDC

• Contact (DC) Max Rating R Load:

  .3A@30VDC

• Contact Resistance:

  150 mΩ

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  1000000 Cycle(s)

• End Contact Plating:

  GOLD

• Input Power-Max:

  1 W

• Input Switching Control Type:

  Random

• Insertion Loss-Max:

  0.5 dB

• Insulation Resistance:

  500000000 Ω

• Isolation-Max:

  35 dB

• Mounting Feature:

  SURFACE MOUNT-STRAIGHT

• Number of Terminals:

  10

• Operate Time:

  5 ms

• Operating Frequency-Max:

  5000 MHz

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -30 °C

• Packing Method:

  TAPE AND REEL

• Physical Dimension:

  14mm x 9mm x 8.2mm

• Relay Action:

  LATCHED

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  RF RELAY

• Release Time:

  5 ms

• Sealing:

  HERMETICALLY SEALED

• Surface Mount:

  NO

• Switching Time:

  10 ms

• Termination Type:

  SOLDER

• VSWR:

  1.25
