Abracon recommends storing the ARJC01-111002T in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 85°C (-40°F to 185°F) and humidity below 80%.
Yes, the ARJC01-111002T is designed to withstand vibrations up to 20G, making it suitable for use in high-vibration environments. However, it's essential to ensure proper mounting and soldering to prevent mechanical stress.
Yes, the ARJC01-111002T is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C (500°F) for a maximum of 20 seconds.
Abracon provides a recommended PCB layout and land pattern in the datasheet, which should be followed to ensure optimal performance and reliability. The recommended land pattern is a rectangular pad with a size of 1.5 mm x 0.8 mm.
The ARJC01-111002T is rated for operation up to 125°C (257°F). However, it's essential to derate the component's performance and consider thermal management strategies to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJC01-111002T Overview

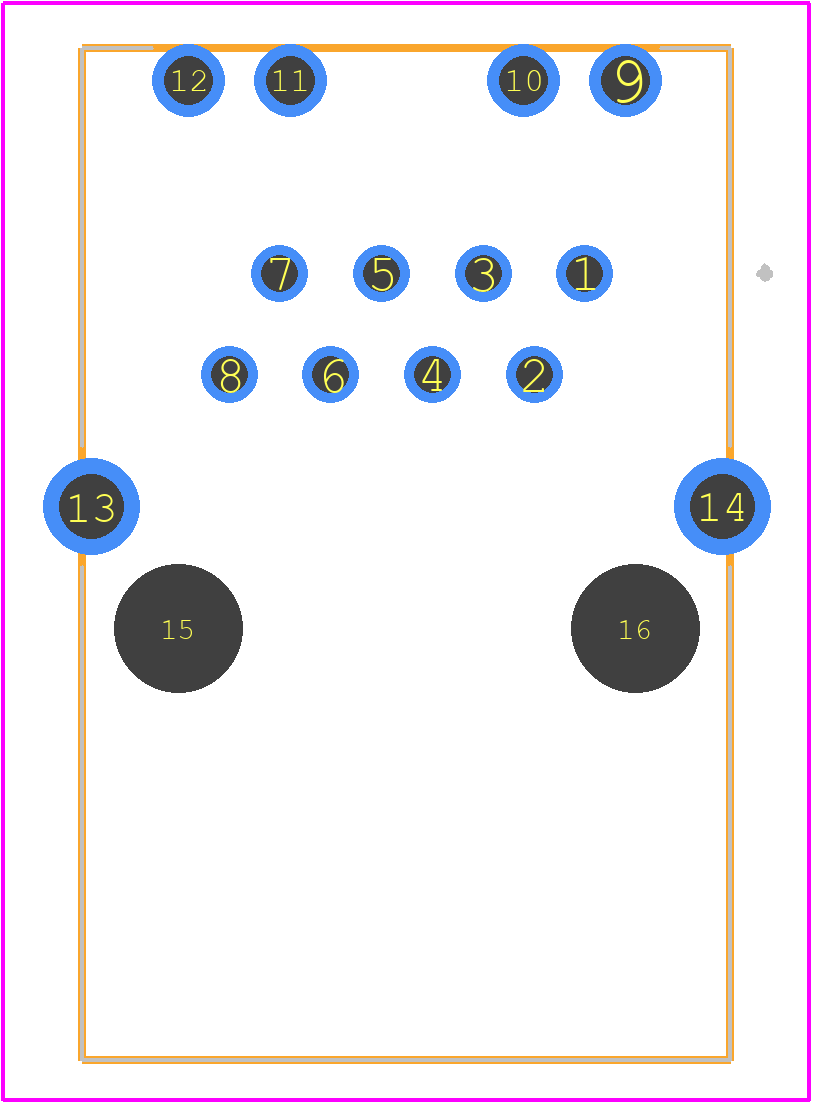

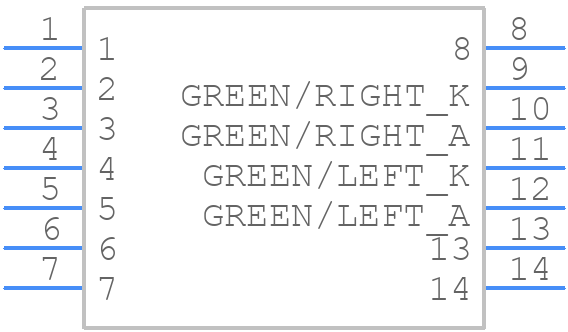

Use the download button to access the ARJC01-111002T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJC0,
or try a keyword search, such as Telecom and Datacom Connectors
