Abracon recommends following the recommended PCB layout guidelines in the application note AN-03, which includes using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
The ARJE-0041 has built-in ESD protection, which can withstand up to 2kV human body model (HBM) and 100V machine model (MM) per IEC 61000-4-2. However, it's still recommended to follow proper ESD handling and storage procedures to prevent damage.
The ARJE-0041 is rated for operation from -40°C to +85°C, but it's recommended to derate the frequency and amplitude of the input signal at higher temperatures to ensure reliable operation.
Yes, the ARJE-0041 is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration per IEC 60068-2-6. However, it's recommended to follow proper mounting and installation procedures to ensure reliable operation.
Yes, the ARJE-0041 is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C. However, it's recommended to follow the recommended soldering profile and procedures to ensure reliable assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJE-0041 Overview

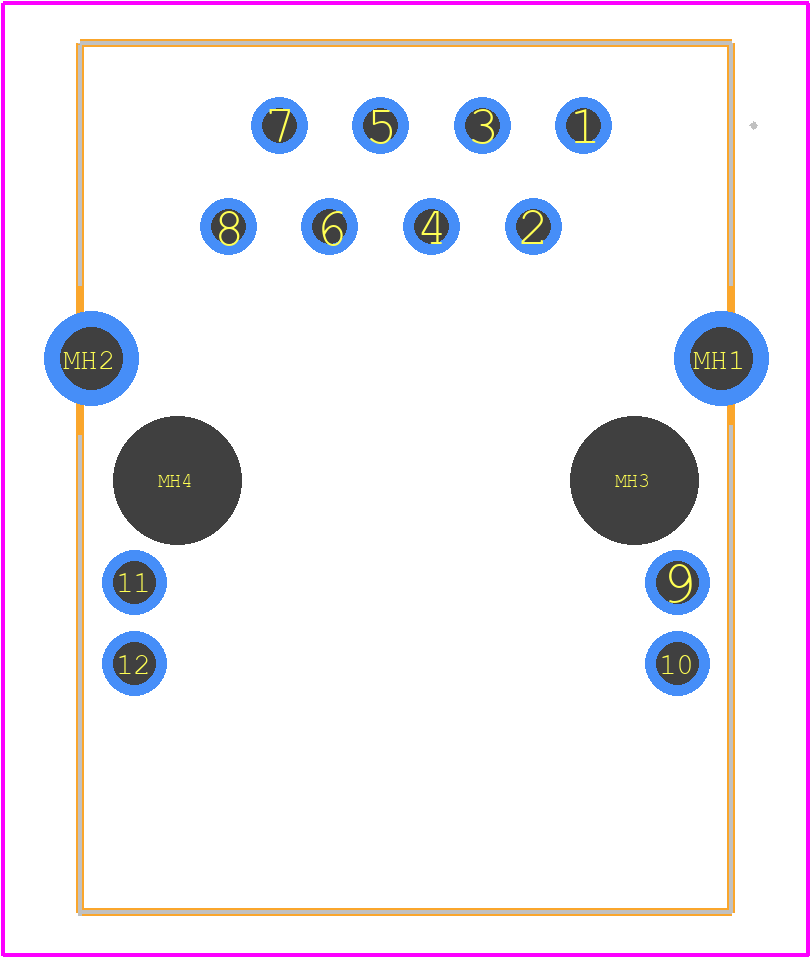

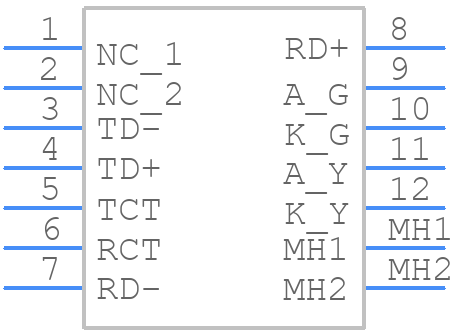

Use the download button to access the ARJE-0041 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJE-,
or try a keyword search, such as Telecom and Datacom Connectors
