Abracon recommends following the IPC-7351B standard for PCB land patterns. The recommended land pattern for the ARJM11A1-009-AA-EW2 can be found in the Abracon Application Note AN-03.
To minimize the impact of PCB layout and nearby components on the crystal resonator's performance, keep the resonator away from high-frequency signals, avoid routing signals underneath the resonator, and use a solid ground plane underneath the resonator. Additionally, follow the recommended PCB layout guidelines in the Abracon Application Note AN-03.
The ARJM11A1-009-AA-EW2 is rated for operation from -40°C to +85°C. However, the device's performance and accuracy may degrade at extreme temperatures. Consult the datasheet and Abracon's application notes for more information on temperature-related performance characteristics.
The ARJM11A1-009-AA-EW2 is designed to meet the requirements of various industrial and commercial applications. However, it may not be suitable for extremely high-vibration or high-shock environments. Consult Abracon's application notes and environmental testing reports to determine the device's suitability for your specific application.
To ensure the ARJM11A1-009-AA-EW2 meets your specific frequency accuracy and stability requirements, consult the datasheet and Abracon's application notes for information on frequency tolerance, aging, and temperature-related frequency drift. You may also need to perform additional testing and characterization to validate the device's performance in your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJM11A1-009-AA-EW2 Overview

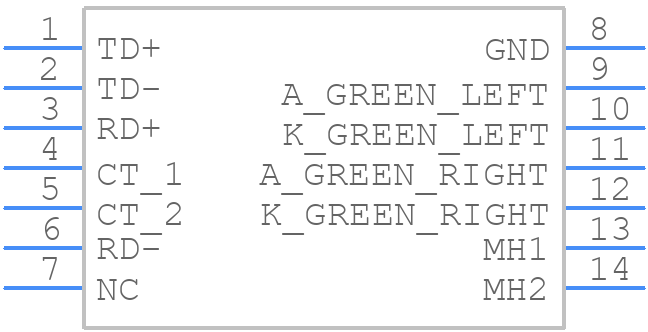

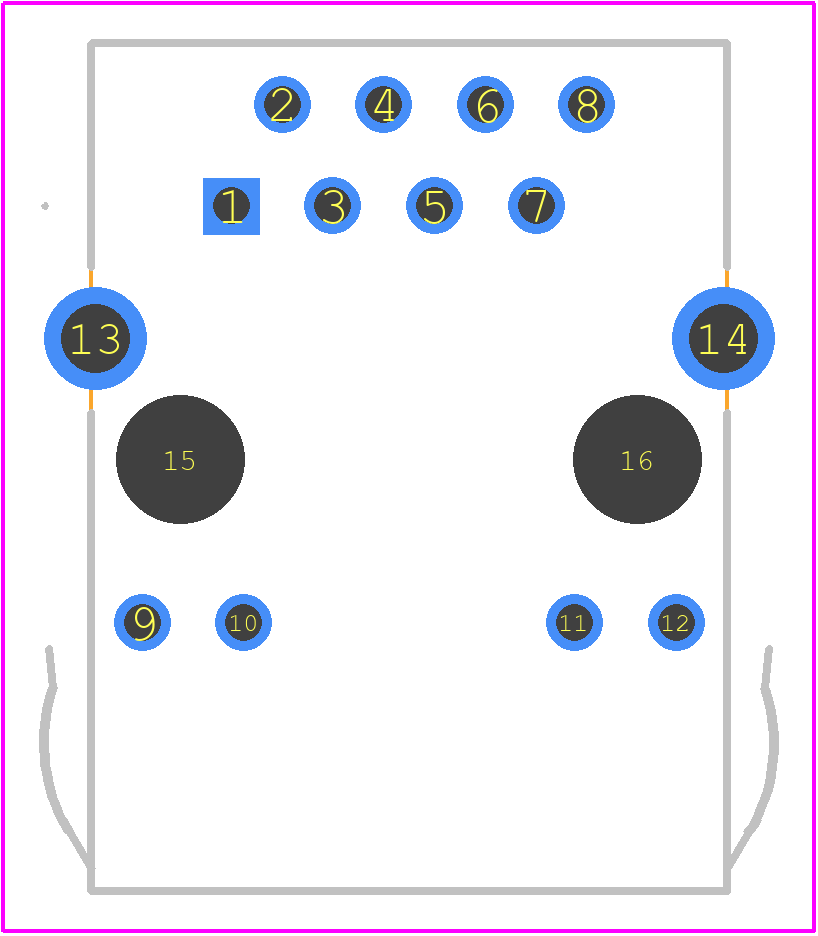

Use the download button to access the ARJM11A1-009-AA-EW2 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJM1,
or try a keyword search, such as Telecom and Datacom Connectors
