The recommended land pattern for the ARJM11B1-502-AB-ER2-T can be found in the Abracon Corporation's application note AN-01, which provides detailed guidelines for PCB layout and land pattern design.
To ensure reliable startup, make sure to follow the recommended crystal oscillator circuit design guidelines, including proper decoupling, biasing, and layout considerations. Additionally, verify that the oscillator is properly terminated and that the load capacitance is within the recommended range.
The ARJM11B1-502-AB-ER2-T is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
While the ARJM11B1-502-AB-ER2-T is designed to be robust, it's essential to consider the vibration specifications and ensure that the device is properly mounted and secured to withstand the expected vibration levels. Consult the datasheet and Abracon Corporation's application notes for guidance on vibration tolerance.
To ensure ESD protection, follow proper handling and storage procedures for the ARJM11B1-502-AB-ER2-T. During PCB assembly, use ESD-safe materials and tools, and consider adding ESD protection devices, such as TVS diodes, to the circuit design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJM11B1-502-AB-ER2-T Overview

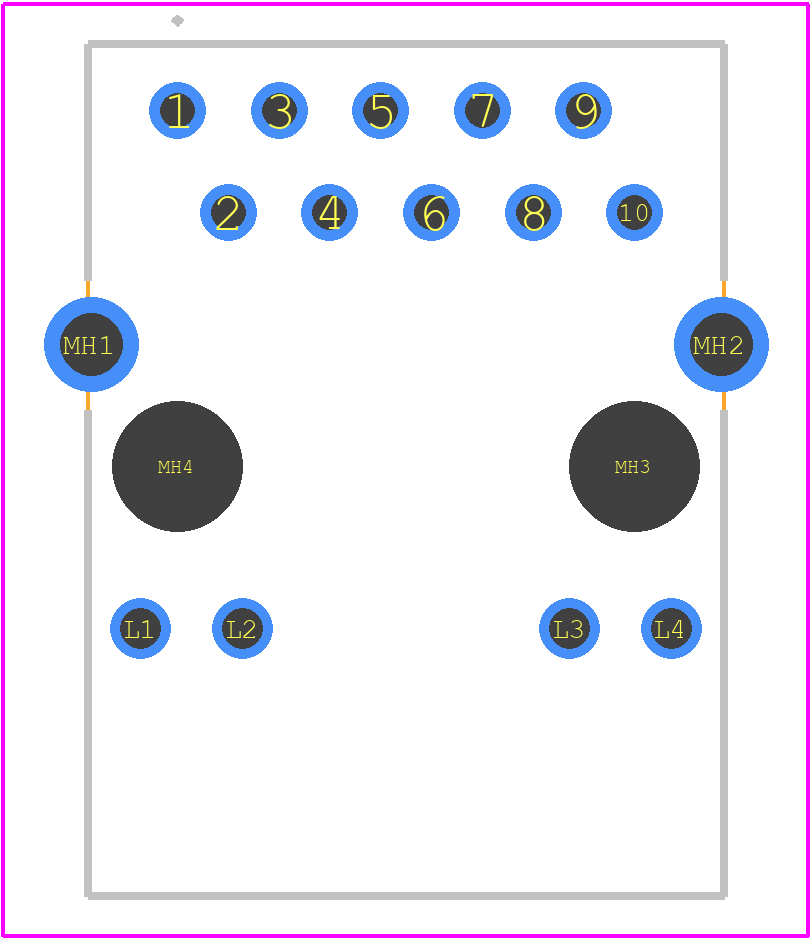

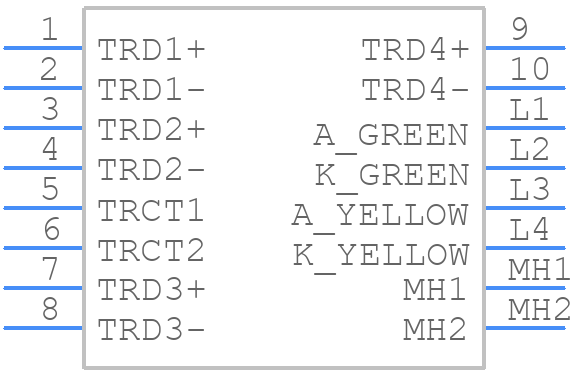

Use the download button to access the ARJM11B1-502-AB-ER2-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARJM1,
or try a keyword search, such as Telecom and Datacom Connectors
