ARJM11B3-009-AB-ER2-T footprint, schematic symbol and 3D model by ABRACON

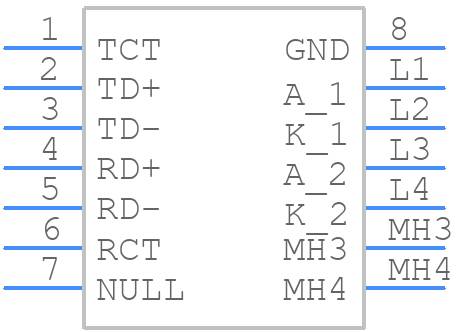

Symbol

click to zoom

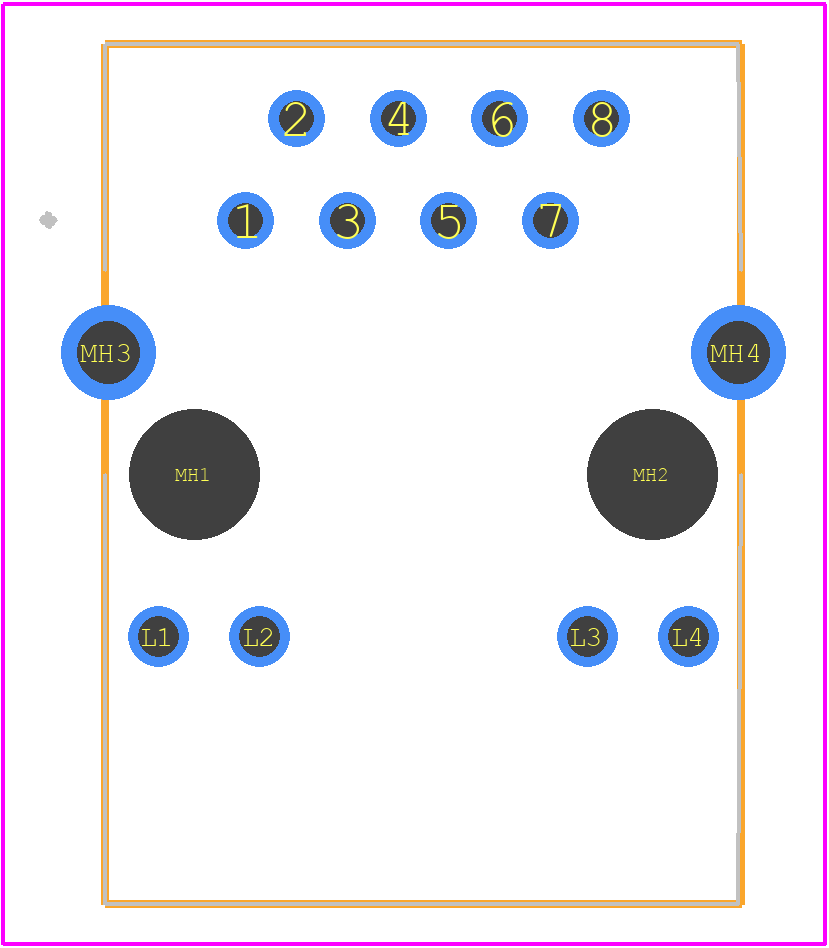

PCB Footprints

ARJM11B3-009-AB-ER2-T - ABRACON PCB footprint - Other - Other - ARJM11B3-009-AB-ER2-T-2

click to zoom

3D Models

ARJM11B3-009-AB-ER2-T - ABRACON - 3D model - Other - ARJM11B3-009-AB-ER2-T-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ARJM11B3-009-AB-ER2-T
Part Number ARJM11B3-009-AB-ER2-T
Manufacturer ABRACON
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - ARJM11B3-009-AB-ER2-T-2
Released Date Oct 28, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)
