The recommended land pattern for the ARJM11D7-104-AB-EW2 can be found in the Abracon Corporation's application note AN-01, which provides detailed guidelines for PCB layout and assembly.
To ensure reliable startup, make sure to follow the recommended crystal oscillator circuit configuration, provide a stable power supply, and ensure the oscillator is properly biased. Additionally, consider adding a startup circuit or a reset circuit to ensure the oscillator starts up correctly.
The ARJM11D7-104-AB-EW2 is rated for operation from -40°C to +85°C. However, it's essential to note that the device's performance and accuracy may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
While the ARJM11D7-104-AB-EW2 is designed to be robust, it's essential to consider the vibration specifications and ensure the device is properly mounted and secured to withstand the expected vibration levels. Consult the datasheet and Abracon Corporation's application notes for guidance on vibration tolerance.
To troubleshoot issues with the ARJM11D7-104-AB-EW2, start by verifying the power supply, clock signal, and oscillator circuit configuration. Use oscilloscopes or logic analyzers to monitor the clock signal and verify its frequency and amplitude. Consult the datasheet and Abracon Corporation's application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARJM11D7-104-AB-EW2 Overview

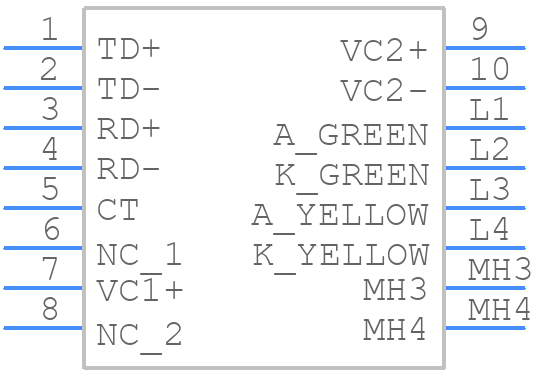

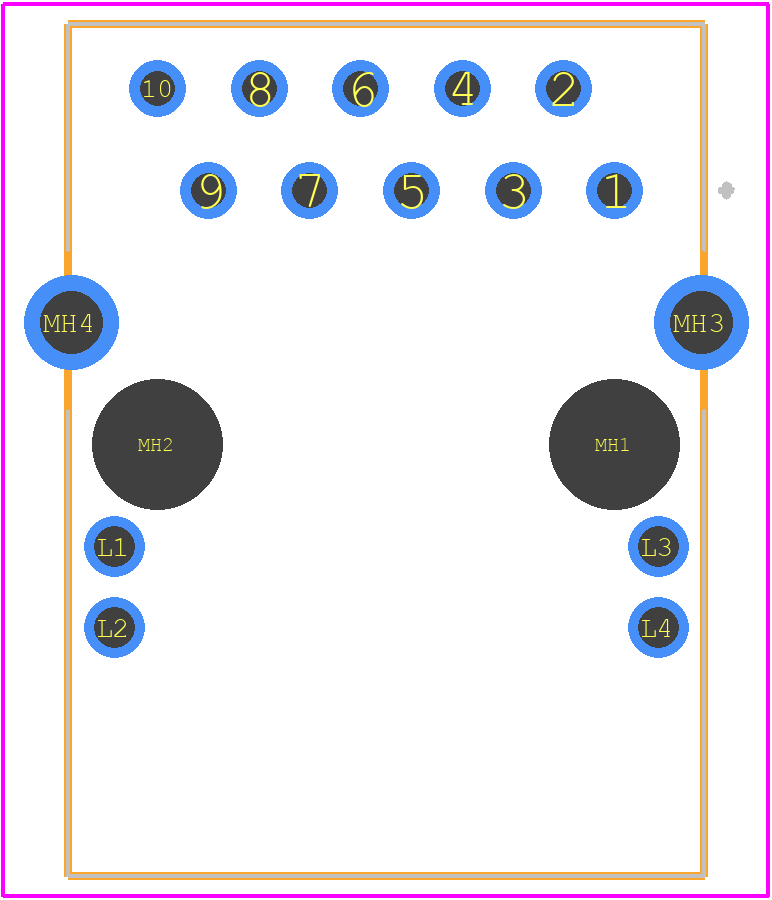

Use the download button to access the ARJM11D7-104-AB-EW2 schematic symbol, PCB footprint, and 3D model.
