ARJM11D7-114-AB-EW2 - ABRACON

Description: Modular Connectors / Ethernet Connectors

Download ARJM11D7-114-AB-EW2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

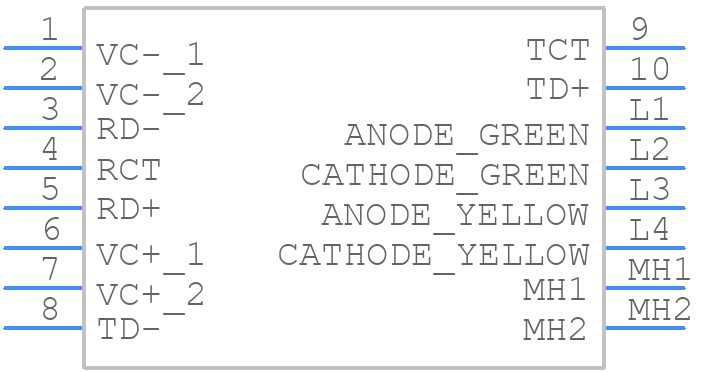

ARJM11D7-114-AB-EW2 - ABRACON - PCB symbol
click to zoom
PCB Footprints

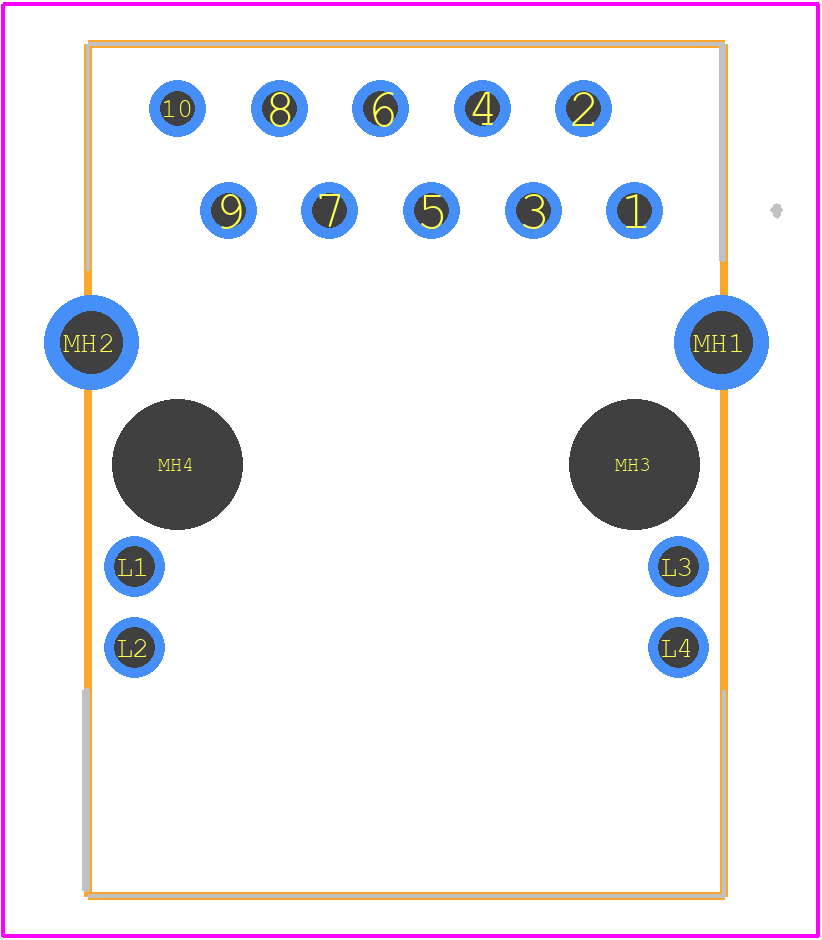

ARJM11D7-114-AB-EW2 - ABRACON PCB footprint - Other - Other - ARJM11D7-114-AB-EW2-2
click to zoom
3D Models
ARJM11D7-114-AB-EW2 - ABRACON - 3D model - Other - ARJM11D7-114-AB-EW2-2
click to zoom

ARJM11D7-114-AB-EW2 Details

  • Manufacturer Part Number:

    ARJM11D7-114-AB-EW2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    7.5

  • Additional Feature:

    SHEILDED

  • Board Mounting Option:

    HOLE 0.128

  • Body Breadth:

    0.543 inch

  • Body Depth:

    0.839 inch

  • Body Length:

    0.626 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    MODULAR RJ45

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e4

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    MOUNTING FLANGE

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Plating Thickness:

    6u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Terminal Length:

    0.13 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

ARJM11D7-114-AB-EW2 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ARJM11D7-114-AB-EW2 can be found in the Abracon Corporation's application note or by contacting their technical support team. It's essential to follow the recommended land pattern to ensure proper mounting and to prevent damage to the component.
  • The ARJM11D7-114-AB-EW2 is a moisture-sensitive device. It's essential to follow the recommended storage and handling procedures to prevent damage. Store the components in a dry, nitrogen-filled package, and handle them in a dry, ESD-protected environment.
  • The thermal resistance of the ARJM11D7-114-AB-EW2 is not explicitly stated in the datasheet. However, you can estimate the thermal resistance based on the package dimensions and material. Alternatively, contact Abracon Corporation's technical support team for more information.
  • The ARJM11D7-114-AB-EW2 is designed to operate in a variety of environments, but its performance in high-vibration environments may vary. Consult with Abracon Corporation's technical support team to determine the component's suitability for your specific application.
  • The recommended soldering profile for the ARJM11D7-114-AB-EW2 can be found in the Abracon Corporation's application note or by contacting their technical support team. It's essential to follow the recommended soldering profile to prevent damage to the component.
