Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the high-frequency signals, and a decoupling capacitor (e.g., 100nF) between the VCC and GND pins to minimize noise and ensure stable operation.
To ensure reliability in high-temperature applications, follow Panasonic's recommended operating temperature range (up to 125°C), use a heat sink if necessary, and ensure good thermal conductivity between the device and the PCB. Additionally, consider using a thermally conductive adhesive or thermal interface material to improve heat dissipation.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V or less to ensure reliable operation and prevent damage to the device.
Yes, the ARN10A24 can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed with a capacitor (e.g., 10uF) to filter out high-frequency noise and prevent oscillation.
To troubleshoot issues with the ARN10A24, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the device is properly bypassed. Also, review the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARN10A24 Overview

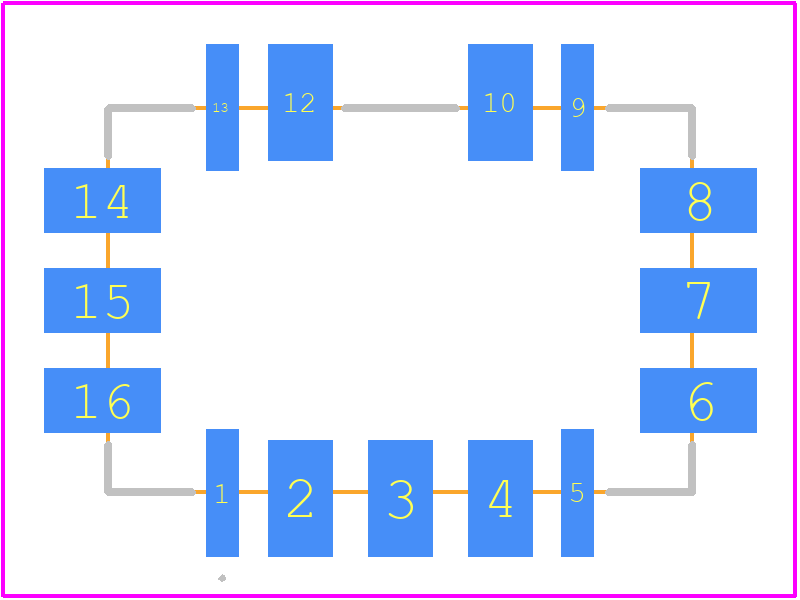

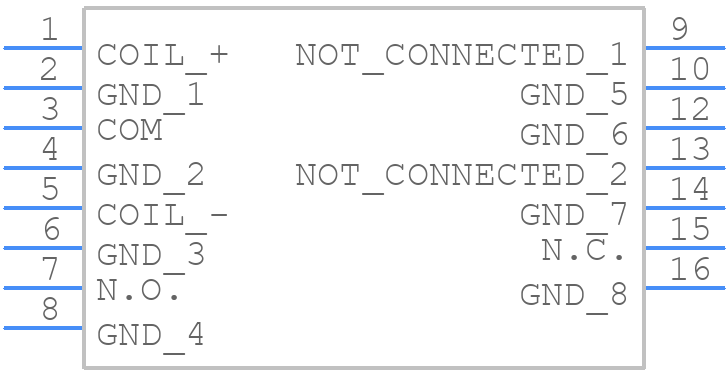

Use the download button to access the ARN10A24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARN10,
or try a keyword search, such as RF Relays
