ARN10A4HZ - Panasonic

Description: Surface Mount Signal Relay, RN Series, 1 Form C Standard, Single Side Stable

Download ARN10A4HZ Model

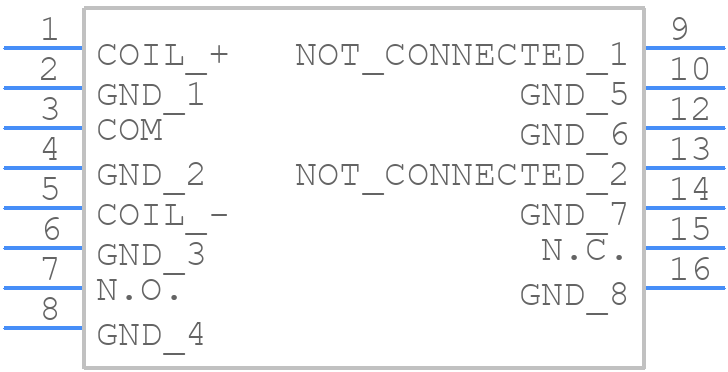

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

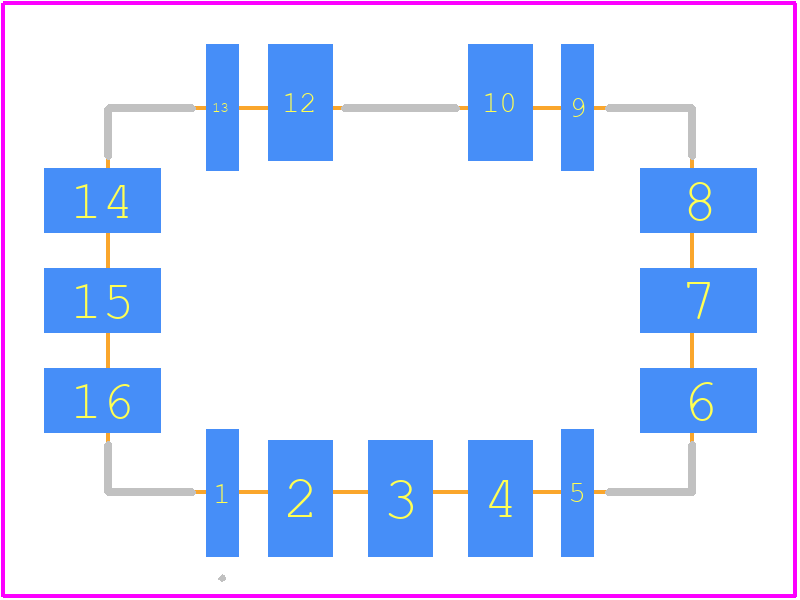

PCB Footprints
ARN10A4HZ - Panasonic PCB footprint - Other - Other - ARN
click to zoom
3D Models
ARN10A4HZ - Panasonic  - 3D model - Other - ARN
click to zoom

ARN10A4HZ Details

  • Manufacturer Part Number:

    ARN10A4HZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    9.6 mm

  • Body Height:

    10 mm

  • Body Length or Diameter:

    14.6 mm

  • Characteristic Impedance:

    50 Ω

  • Coil Current(DC)-Max:

    0.711 A

  • Coil Operate Voltage(DC):

    3.375 V

  • Coil Power:

    320 mW

  • Coil Release Voltage(DC):

    0.3375 V

  • Coil Resistance:

    63.3 Ω

  • Coil Voltage(DC)-Max:

    4.5 V

  • Coil/Input Supply Type:

    DC

  • Electrical Life:

    1000000 Cycle(s)

  • Insertion Loss-Max:

    0.12 dB

  • Isolation-Max:

    55 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-RIGHT ANGLE

  • Operate Time:

    5 ms

  • Operating Frequency-Max:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14.6mm x 9.6mm x 10mm

  • Relay Action:

    LATCHED

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Terminal Finish:

    GOLD

  • Termination Type:

    SOLDER

  • VSWR:

    1.15

ARN10A4HZ Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • To handle the high inrush current, it's recommended to use a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, a freewheeling diode can be used to reduce the voltage spike during switching.
  • The maximum allowable voltage drop across the relay contacts is typically around 100 mV. Exceeding this value can lead to contact degradation and reduced relay lifespan.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper derating guidelines for the relay's coil voltage and current. Additionally, consider using a relay with a higher temperature rating or a thermally conductive pad to dissipate heat.
  • To reduce EMI, it's recommended to use a coil suppression method such as a resistor-capacitor (RC) snubber circuit or a diode-transistor (DT) clamp circuit. These methods can help reduce the electromagnetic interference generated by the relay coil.
