Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
The ARN12A12 relay has a coil voltage rating of 12V and a coil current rating of 15mA. Ensure your design provides a stable voltage supply and current limiting to prevent overheating or damage to the relay. You may need to add a voltage regulator, current limiter, or a driver IC to manage the coil voltage and current.
The ARN12A12 relay has an operating temperature range of -40°C to 85°C. As the temperature increases, the relay's performance may degrade, and its lifespan may be reduced. Ensure your design operates within the recommended temperature range, and consider adding thermal management measures, such as heat sinks or thermal pads, if necessary.
To ensure the relay's contacts are clean and free from contamination, follow proper handling and storage procedures. Avoid touching the contacts, and store the relay in a clean, dry environment. If contamination occurs, use a soft brush or a lint-free cloth to gently clean the contacts. Avoid using chemicals or solvents, as they may damage the relay.
The ARN12A12 relay's expected lifespan is approximately 100,000 cycles. To extend the relay's lifespan, ensure proper operating conditions, avoid excessive voltage or current, and minimize the number of switching cycles. You can also consider using a relay with a higher lifespan rating or implementing a redundant relay design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARN12A12 Overview

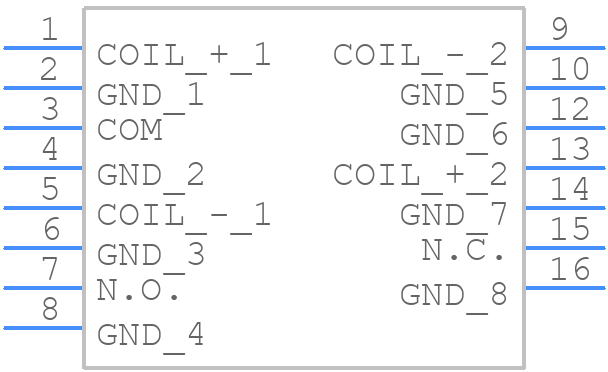

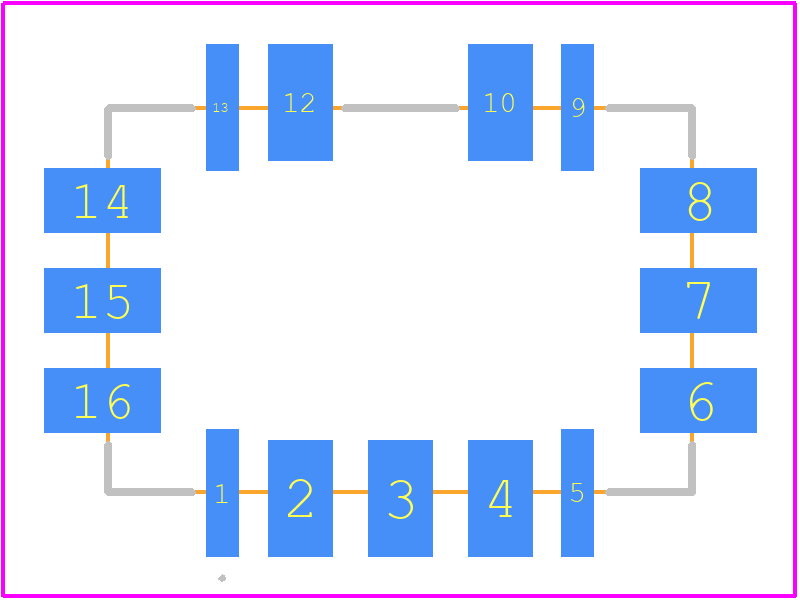

Use the download button to access the ARN12A12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARN12,
or try a keyword search, such as RF Relays
