ARN12A24 Frequently Asked Questions (FAQs)

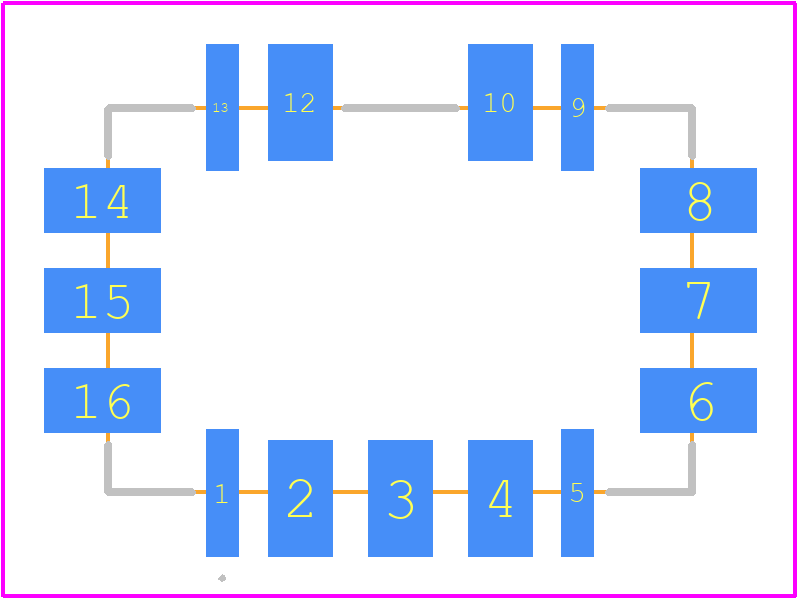

• What is the recommended PCB layout and land pattern for the ARN12A24?
  Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
• How do I handle the relay's inrush current during switching?
  To handle the inrush current, it's recommended to use a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, ensure that the power supply can handle the peak current during switching.
• What is the maximum switching frequency for the ARN12A24?
  The maximum switching frequency for the ARN12A24 is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit the switching frequency to 1-2 Hz to prevent overheating and reduce the relay's lifespan.
• Can I use the ARN12A24 in a high-temperature environment?
  The ARN12A24 is rated for operation up to 85°C. However, it's essential to consider the derating curve and ensure that the relay is not exposed to temperatures above the recommended range to prevent premature failure.
• How do I ensure the relay's contacts are clean and free from contamination?
  Regularly cleaning the relay contacts with a soft brush or a cotton swab and a mild solvent can help prevent contamination. Additionally, ensure that the relay is stored in a clean and dry environment to prevent moisture ingress.
