ARN12A4H - Panasonic

ARN12A4H Frequently Asked Questions (FAQs)

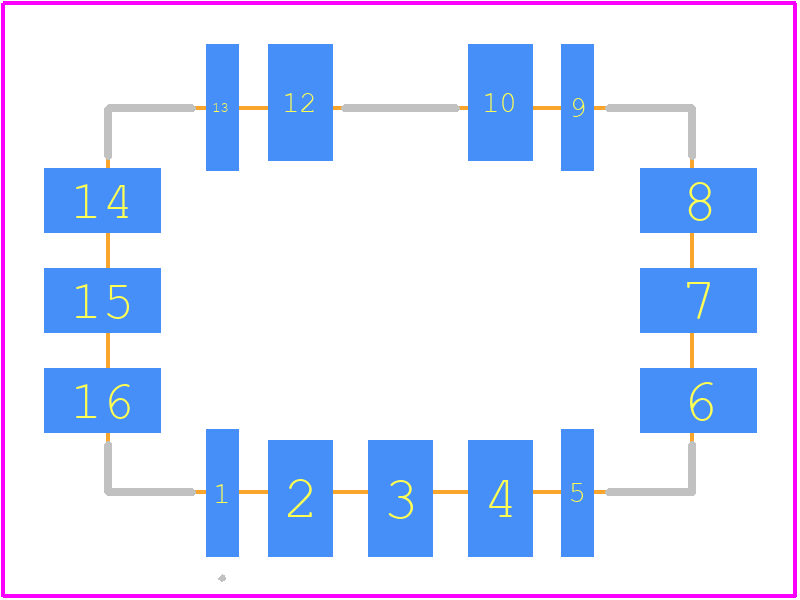

• What is the recommended PCB layout and land pattern for the ARN12A4H?
  Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
• How do I handle the relay's high inrush current during switching?
  To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting to reduce the inrush current.
• What is the maximum allowable voltage drop across the relay contacts?
  The maximum allowable voltage drop across the relay contacts is typically around 100 mV to 200 mV. Exceeding this voltage drop can lead to contact degradation or failure. Ensure that the relay is operated within the specified voltage range and that the contact resistance is monitored regularly.
• Can I use the ARN12A4H relay in a high-temperature environment?
  While the ARN12A4H relay has a high operating temperature range, it's essential to consider the derating factors and ensure that the relay is operated within the specified temperature range. Exceeding the maximum operating temperature can lead to reduced relay life or failure.
• How do I ensure the relay's electromagnetic compatibility (EMC) in my design?
  To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing track lengths, and using shielding or filtering components. Additionally, consider using a relay with built-in EMC features, such as a shielded coil or a relay with a low electromagnetic emission design.
