ARN12A4HX - Panasonic

Description: Surface Mount Signal Relay, RN Series, 1 Form C Standard, 2 Coil Latching

Download ARN12A4HX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

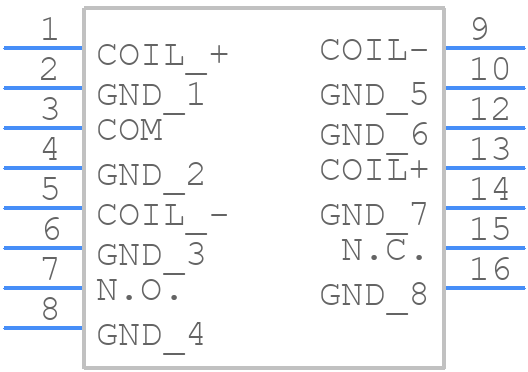

Symbol
ARN12A4HX - Panasonic - PCB symbol
click to zoom

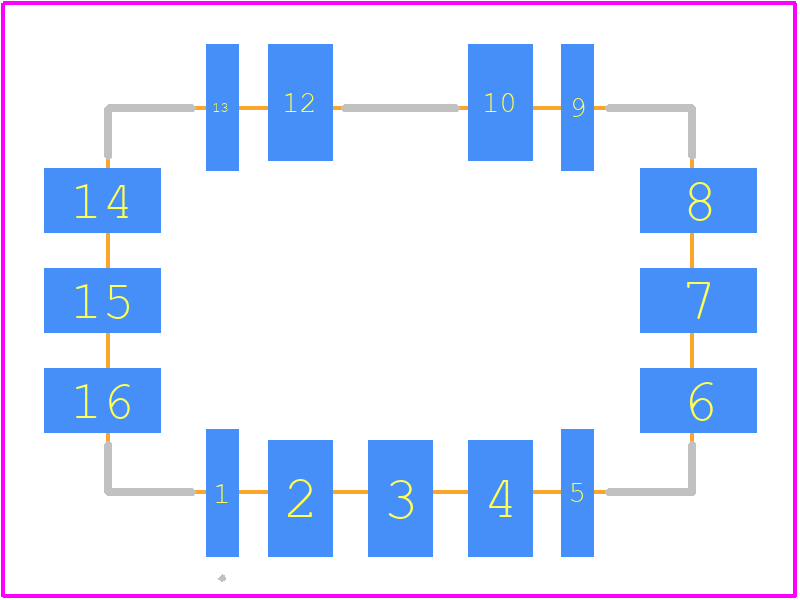

PCB Footprints
ARN12A4HX - Panasonic PCB footprint - Other - Other - ARN
click to zoom
3D Models
ARN12A4HX - Panasonic - 3D model - Other - ARN
click to zoom

ARN12A4HX Details

  • Manufacturer Part Number:

    ARN12A4HX

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    9.6 mm

  • Body Height:

    10 mm

  • Body Length or Diameter:

    14.6 mm

  • Characteristic Impedance:

    50 Ω

  • Coil Current(DC)-Max:

    0.889 A

  • Coil Operate Voltage(DC):

    3.375 V

  • Coil Power:

    400 mW

  • Coil Release Voltage(DC):

    0.3375 V

  • Coil Resistance:

    50.6 Ω

  • Coil Voltage(DC)-Max:

    4.5 V

  • Coil Voltage-Nom:

    4.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Resistance:

    100 mΩ

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    1000000 Cycle(s)

  • End Contact Plating:

    GOLD

  • Input Switching Control Type:

    Random

  • Insertion Loss-Max:

    0.12 dB

  • Insulation Resistance:

    1000000000 Ω

  • Isolation-Max:

    55 dB

  • Mounting Feature:

    SURFACE MOUNT-RIGHT ANGLE

  • Number of Terminals:

    15

  • Operate Time:

    5 ms

  • Operating Frequency-Max:

    2000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TAPE AND REEL

  • Physical Dimension:

    14.6mm x 9.6mm x 10mm

  • Relay Action:

    LATCHED

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    5 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

  • VSWR:

    1.15

ARN12A4HX Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
  • To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting to reduce the inrush current.
  • The maximum switching frequency for the ARN12A4HX is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit the switching frequency to 1-2 Hz to ensure reliable operation and prevent overheating. Higher frequencies may be possible, but it's essential to consult with Panasonic or perform thorough testing to determine the relay's suitability for high-frequency applications.
  • The ARN12A4HX has an operating temperature range of -40°C to 85°C. While it can operate in high-temperature environments, it's essential to consider the relay's power dissipation and ensure proper heat sinking to prevent overheating. Consult with Panasonic or perform thermal analysis to determine the relay's suitability for high-temperature applications.
  • To ensure the relay's contacts are clean and free from contamination, follow proper handling and storage procedures. Avoid touching the contacts, and use anti-static wrist straps or mats when handling the relay. Clean the contacts with a soft brush or a lint-free cloth and a mild solvent, if necessary. Apply a contact lubricant or coating to prevent corrosion and ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARN12A4HX Overview

Use the download button to access the ARN12A4HX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARN12, or try a keyword search, such as RF Relays
