ARN30A24 - Panasonic

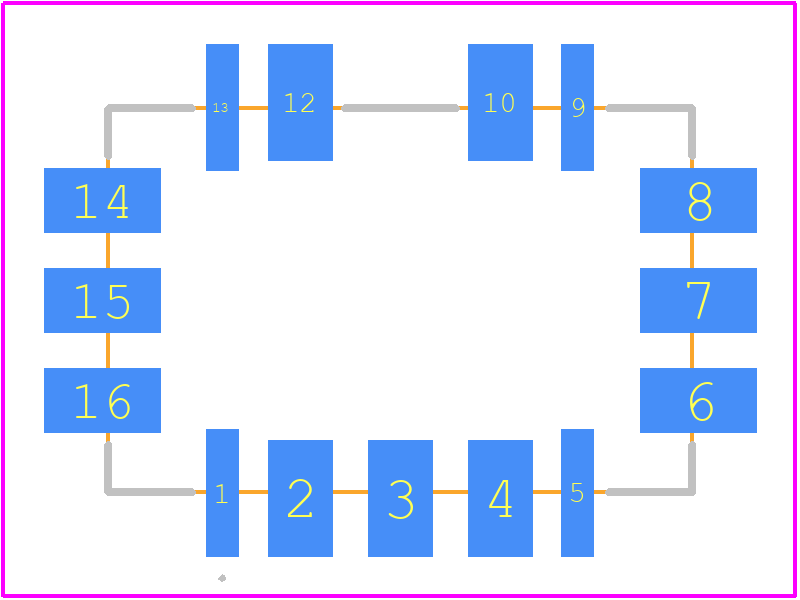

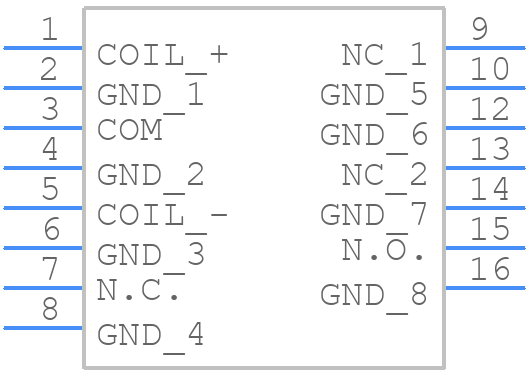

ARN30A24 Details

• Manufacturer Part Number:

  ARN30A24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  ROHS COMPLIANT

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  8

• Body Breadth:

  9.6 mm

• Body Height:

  10 mm

• Body Length or Diameter:

  14.6 mm

• Characteristic Impedance:

  50 Ω

• Coil Current(DC)-Max:

  0.133 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  320 mW

• Coil Release Voltage(DC):

  1.8 V

• Coil Resistance:

  1800 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact Resistance:

  100 mΩ

• Contact/Output Supply Type:

  DC

• Electrical Life:

  1000000 Cycle(s)

• End Contact Plating:

  GOLD

• Input Switching Control Type:

  Random

• Insertion Loss-Max:

  0.12 dB

• Insulation Resistance:

  1000000000 Ω

• Isolation-Max:

  55 dB

• JESD-609 Code:

  e4

• Mounting Feature:

  SURFACE MOUNT-RIGHT ANGLE

• Number of Terminals:

  15

• Operate Time:

  5 ms

• Operating Frequency-Max:

  2000 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  14.6mm x 9.6mm x 10mm

• Relay Action:

  LATCHED

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  RF RELAY

• Release Time:

  5 ms

• Surface Mount:

  NO

• Terminal Finish:

  Gold (Au)

• Termination Type:

  SOLDER

• VSWR:

  1.15
