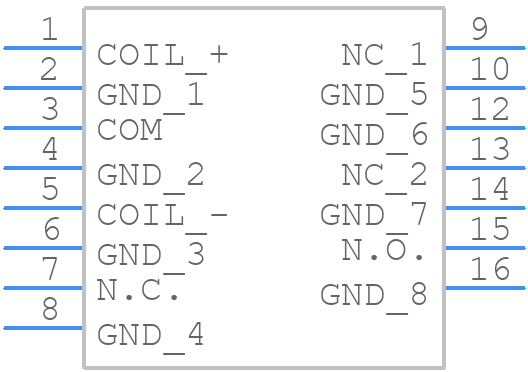

ARN30A24X footprint, schematic symbol and 3D model by Panasonic

Symbol

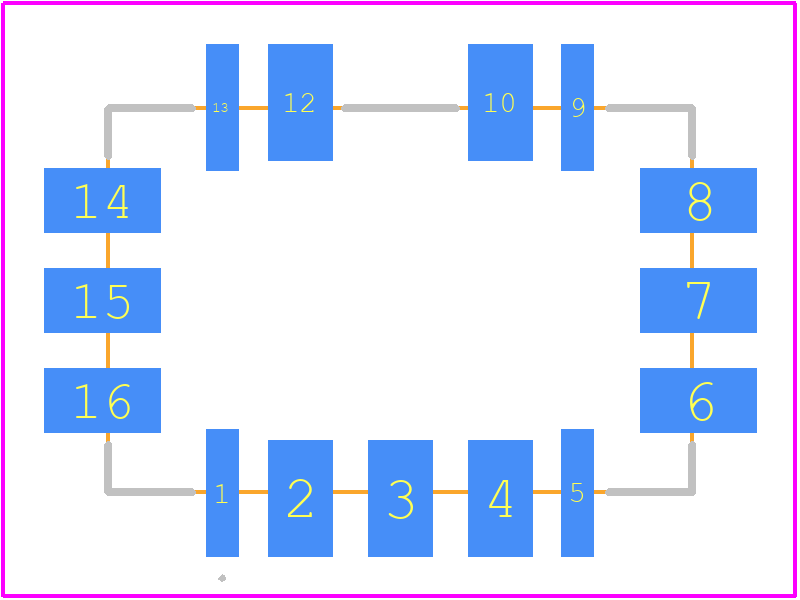

PCB Footprints

3D Models

ARN30A24X Details

Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. The input and output pins should be placed on opposite sides of the board to minimize electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it is recommended to derate the output power of the ARN30A24X according to the temperature derating curve provided in the datasheet. Additionally, ensure good thermal management by providing adequate heat sinking and airflow around the device.
Panasonic recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The capacitor should be placed as close to the input pins as possible to minimize noise and ripple.
Yes, the ARN30A24X can be used in a parallel configuration to increase output power. However, it is recommended to use a current-sharing circuit to ensure equal current distribution among the devices. Additionally, the output capacitors should be selected to handle the increased output current.
Panasonic recommends using a low-ESR ceramic capacitor with a value of 10uF to 47uF for the output capacitor. The capacitor should be placed as close to the output pins as possible to minimize noise and ripple.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ARN30A24X schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ARN30, or try a keyword search, such as RF Relays
