Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. The input and output pins should be placed on the top layer, and the ground pins should be placed on the bottom layer. A thermal relief pattern is also recommended for the thermal pad.
To ensure reliability in high-temperature applications, it is recommended to follow Panasonic's guidelines for thermal design and management. This includes providing adequate heat sinking, using a thermal interface material, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range and derated according to the temperature derating curve provided in the datasheet.
The maximum allowable voltage stress on the input pins of the ARN30A24Z is 30V, which is the absolute maximum rating. However, it is recommended to limit the input voltage to 24V or less to ensure reliable operation and to prevent damage to the device.
Yes, the ARN30A24Z can be used in a switching power supply application. However, it is recommended to follow Panasonic's guidelines for switching power supply design and to ensure that the device is operated within its specified frequency range and with adequate filtering to prevent electromagnetic interference (EMI).
The recommended input capacitor value and type for the ARN30A24Z depend on the specific application and operating conditions. However, as a general guideline, a 10uF to 22uF ceramic or film capacitor with a voltage rating of 25V or higher is recommended. The capacitor should be placed as close as possible to the input pins of the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARN30A24Z Overview

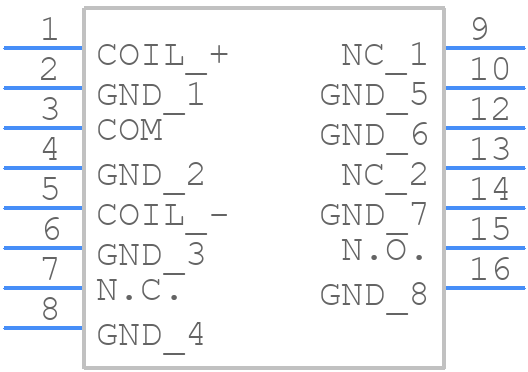

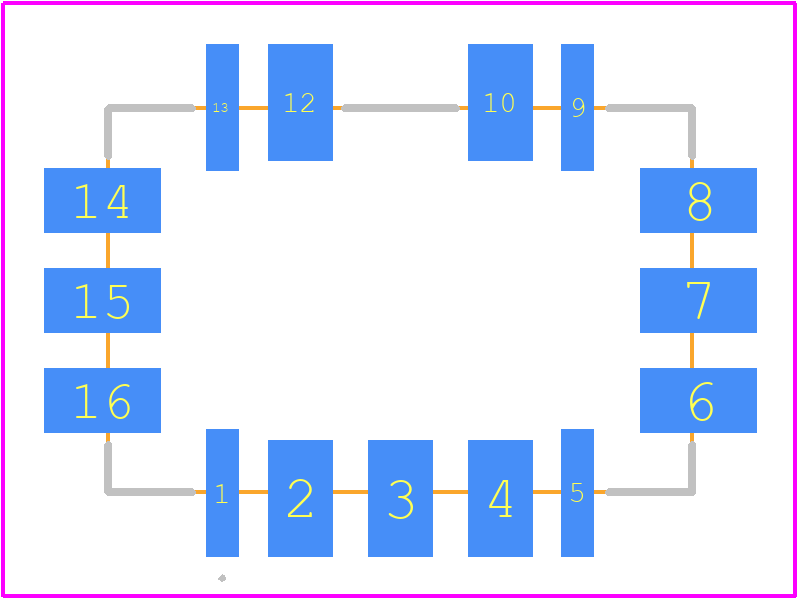

Use the download button to access the ARN30A24Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARN30,
or try a keyword search, such as RF Relays
