ARN30A4H Frequently Asked Questions (FAQs)

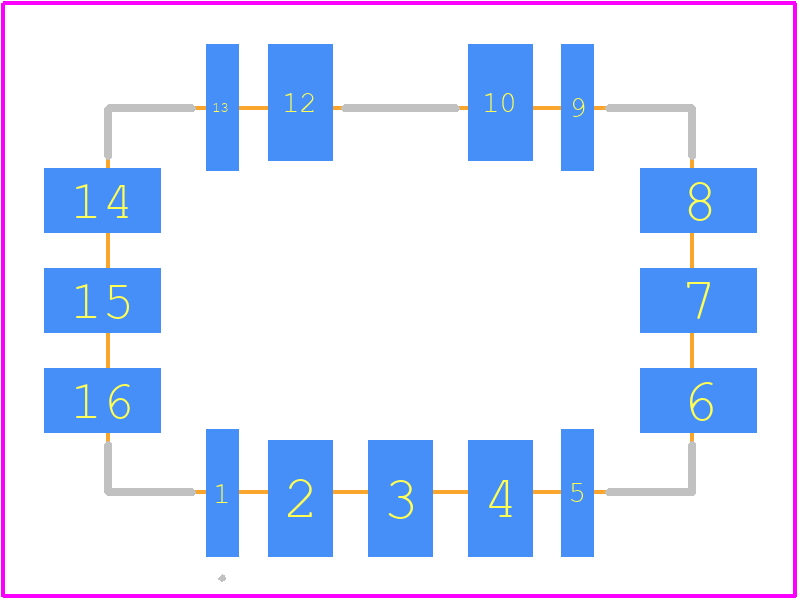

• What is the recommended PCB layout and land pattern for the ARN30A4H?
  Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
• How do I handle the relay's high inrush current during switching?
  To handle the high inrush current, it's recommended to use a suitable current-limiting resistor or inrush current limiter in series with the relay coil. Additionally, consider using a soft-start circuit or a relay driver with built-in current limiting.
• What is the maximum allowable voltage drop across the relay contacts?
  The maximum allowable voltage drop across the relay contacts is typically specified as 100 mV to 200 mV. Exceeding this value can lead to contact degradation and reduced relay lifespan.
• Can I use the ARN30A4H in a high-temperature environment?
  While the ARN30A4H has a high operating temperature range, it's essential to consider the derating curves and temperature coefficients specified in the datasheet. Ensure that the relay is operated within the recommended temperature range to maintain its performance and lifespan.
• How do I ensure reliable relay operation in a high-vibration environment?
  To ensure reliable operation in a high-vibration environment, consider using a relay with a high vibration resistance rating, such as the ARN30A4H. Additionally, ensure that the relay is properly secured to the PCB and that the PCB is designed to withstand vibrations.
