ARS1012 - Panasonic

Description: High Frequency / RF Relays 500MA SPST 12VDC NON-LATCHING PCB 500 mA 75 Ohms 16.7 mA 200 mW 3 GHz

Download ARS1012 Model

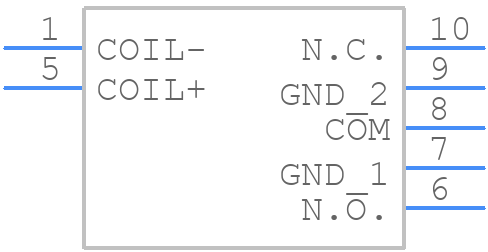

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ARS1012 - Panasonic PCB footprint - Other - Other - ARS1003-1
click to zoom

ARS1012 Details

  • Manufacturer Part Number:

    ARS1012

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    8.6 mm

  • Body Height:

    7.2 mm

  • Body Length or Diameter:

    14 mm

  • Characteristic Impedance:

    75 Ω

  • Coil Current(DC)-Max:

    0.017 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    720 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    0.5 A

  • Contact (DC) Max Rating R Load:

    .5A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    300000 Cycle(s)

  • Input Power-Max:

    1 W

  • Insertion Loss-Max:

    0.3 dB

  • Isolation-Max:

    30 dB

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    14mm x 8.6mm x 7.2mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    6 ms

  • Surface Mount:

    NO

  • Switching Time:

    16 ms

  • Termination Type:

    SOLDER

  • VSWR:

    1.4
