ARS11A4H - Panasonic

Description: 3 GHz capable, 10 W carrying power (at 3 GHz), 50/75 Ω, 1 Form C Relays

Download ARS11A4H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

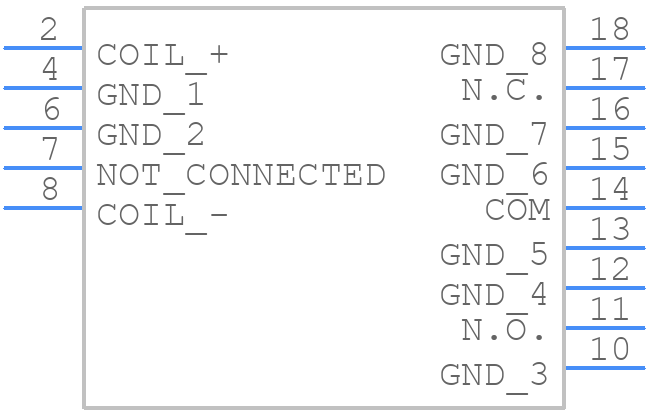

Symbol
ARS11A4H - Panasonic - PCB symbol
click to zoom
PCB Footprints
ARS11A4H - Panasonic PCB footprint - Other - Other - ARS_E_75
click to zoom
3D Models
ARS11A4H - Panasonic - 3D model - Other - ARS_E_75
click to zoom

ARS11A4H Details

  • Manufacturer Part Number:

    ARS11A4H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    8.6 mm

  • Body Height:

    8 mm

  • Body Length or Diameter:

    14 mm

  • Characteristic Impedance:

    75 Ω

  • Coil Current(DC)-Max:

    0.044 A

  • Coil Operate Voltage(DC):

    3.38 V

  • Coil Power:

    200 mW

  • Coil Release Voltage(DC):

    3.38 V

  • Coil Resistance:

    101.3 Ω

  • Coil Voltage(DC)-Max:

    4.5 V

  • Coil Voltage-Nom:

    4.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    0.5 A

  • Contact (DC) Max Rating R Load:

    .5A@30VDC

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    300000 Cycle(s)

  • End Contact Plating:

    GOLD

  • Input Power-Max:

    1 W

  • Input Switching Control Type:

    Random

  • Insertion Loss-Max:

    0.5 dB

  • Insulation Resistance:

    100000000 Ω

  • Isolation-Max:

    30 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 8.6mm x 8mm

  • Relay Action:

    LATCHED

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    6 ms

  • Surface Mount:

    NO

  • Switching Time:

    16 ms

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

  • VSWR:

    1.5

ARS11A4H Frequently Asked Questions (FAQs)

  • Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the sensor. The sensor should be placed away from high-frequency components and traces. A detailed layout guide is available in the Panasonic application note AN58074.
  • The ARS11A4H requires a one-point calibration at 25°C to ensure accurate temperature measurement. The calibration process involves applying a known temperature to the sensor and adjusting the output voltage to match the expected value. A detailed calibration procedure is available in the Panasonic application note AN58074.
  • The ARS11A4H can operate from -40°C to 125°C, but the accuracy of the temperature measurement may degrade above 100°C. For applications requiring high-temperature operation, Panasonic recommends using the ARS11A4H-HT, which is specifically designed for high-temperature applications.
  • The ARS11A4H is not designed for use in humid environments and may be susceptible to moisture-related failures. For applications requiring operation in humid environments, Panasonic recommends using the ARS11A4H-H, which is designed for high-humidity applications.
  • The ARS11A4H can operate from a power supply voltage of 4.5V to 5.5V, but Panasonic recommends using a 5V power supply for optimal performance and accuracy.
