Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The choice of TIM depends on the specific application, operating temperature, and thermal requirements. Panasonic recommends using a TIM with a thermal conductivity of at least 1 W/m-K and a thickness of 0.1-0.5 mm. Consult with thermal management experts or Panasonic's technical support for specific guidance.
While the datasheet specifies the maximum voltage rating, the actual voltage derating depends on the application, operating conditions, and reliability requirements. As a general rule, it's recommended to derate the voltage by 10-20% to ensure long-term reliability and prevent premature failure.
Follow Panasonic's recommended soldering and rework guidelines, which include using a soldering iron with a temperature of 350°C max, a soldering time of 3 seconds max, and a peak temperature of 260°C during reflow. Additionally, use a solder with a melting point above 217°C and follow proper cleaning and drying procedures.
Store the ARS11Y03X in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the devices by the body, avoiding touching the leads or electrical contacts. Follow ESD precautions, such as using anti-static wrist straps and mats, to prevent damage during handling and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS11Y03X Overview

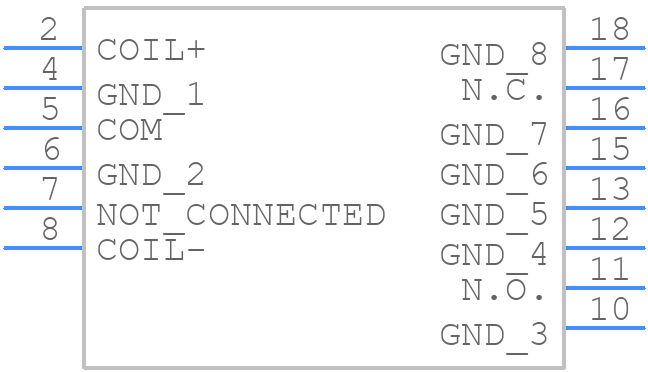

Use the download button to access the ARS11Y03X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS11,
or try a keyword search, such as RF Relays
