Panasonic provides a recommended PCB layout and land pattern in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
To handle the high inrush current, it's recommended to use a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, ensure that the power supply can handle the high current demand during switching.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the relay's performance may degrade at extreme temperatures. For example, the relay's contact resistance may increase at high temperatures, affecting its overall performance.
To ensure the relay's contacts are clean and free from contamination, it's recommended to handle the relay by the tabs or pins, avoiding touching the contacts. Additionally, use a soft brush or a lint-free cloth to clean the contacts, and avoid using chemicals or solvents that may damage the relay.
The relay's expected lifespan is typically specified in the datasheet, but it's essential to consider the relay's operating conditions, such as the number of switching cycles, temperature, and humidity, which can affect its lifespan. To ensure system reliability, it's recommended to implement redundancy or backup systems, especially in critical applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS12Y12 Overview

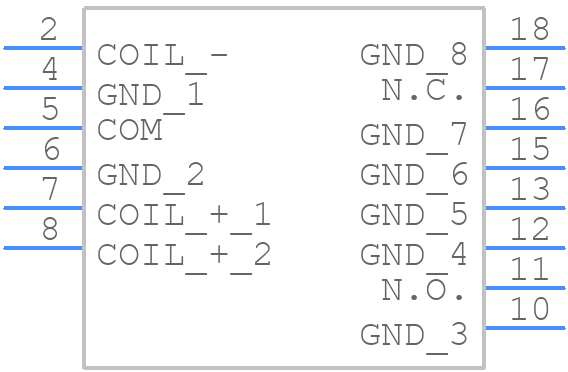

Use the download button to access the ARS12Y12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS12,
or try a keyword search, such as RF Relays
