Panasonic provides a recommended PCB layout in their application note, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The ARS1312 has a built-in overcurrent protection feature, but it's recommended to add an external overcurrent protection circuit to prevent damage from excessive current. A fuse or a dedicated overcurrent protection IC can be used for this purpose.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the ARS1312 within a temperature range of -20°C to 85°C for optimal performance.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering components, and implement proper grounding and decoupling techniques. Additionally, consider using a metal shield or a Faraday cage to enclose the ARS1312 and other sensitive components.
Store the ARS1312 in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -20°C to 40°C, and the relative humidity should be below 60%. Avoid storing the device in areas with high levels of pollution or corrosive substances.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS1312 Overview

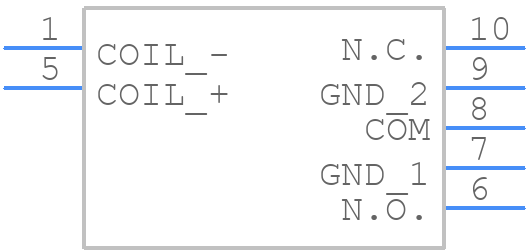

Use the download button to access the ARS1312 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS13,
or try a keyword search, such as RF Relays
