Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal and electrical issues.
To handle the inrush current, it's recommended to use a suitable inrush current limiter, such as a Negative Temperature Coefficient (NTC) thermistor or a soft-start circuit. This helps prevent voltage drops and ensures reliable relay operation.
The maximum switching frequency for the ARS16Y12 is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit the switching frequency to 1-2 Hz to ensure reliable operation and prevent overheating.
While the ARS16Y12 has a rated operating temperature range of -40°C to 85°C, it's essential to consider the relay's derating curves and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow Panasonic's guidelines for high-temperature applications.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider using a relay with built-in EMC features, such as the ARS16Y12's internal shielding.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ARS16Y12 Overview

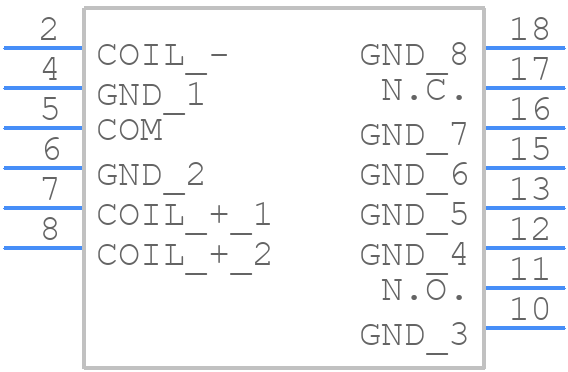

Use the download button to access the ARS16Y12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARS16,
or try a keyword search, such as RF Relays
