ARS16Y4H - Panasonic

Description: High Frequency / RF Relays RS Relay

Download ARS16Y4H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

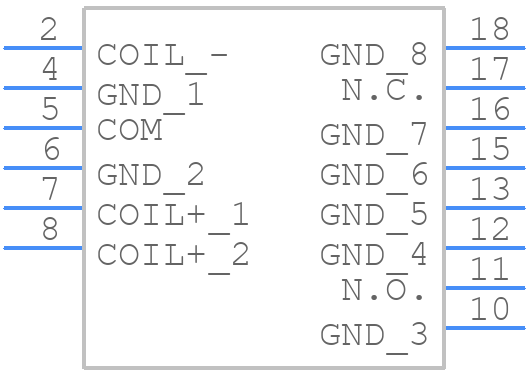

ARS16Y4H - Panasonic - PCB symbol
click to zoom
PCB Footprints
ARS16Y4H - Panasonic PCB footprint - Other - Other - ARS_Y_50
click to zoom
3D Models
ARS16Y4H - Panasonic - 3D model - Other - ARS_Y_50
click to zoom

ARS16Y4H Details

  • Manufacturer Part Number:

    ARS16Y4H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    8.6 mm

  • Body Height:

    8 mm

  • Body Length or Diameter:

    14 mm

  • Characteristic Impedance:

    50 Ω

  • Coil Current(DC)-Max:

    0.089 A

  • Coil Operate Voltage(DC):

    3.38 V

  • Coil Power:

    400 mW

  • Coil Release Voltage(DC):

    3.38 V

  • Coil Resistance:

    50.6 Ω

  • Coil Voltage(DC)-Max:

    4.5 V

  • Coil Voltage-Nom:

    4.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    0.5 A

  • Contact (DC) Max Rating R Load:

    .5A@30VDC

  • Contact Resistance:

    100 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    300000 Cycle(s)

  • End Contact Plating:

    GOLD

  • Input Power-Max:

    1 W

  • Input Switching Control Type:

    Random

  • Insertion Loss-Max:

    0.4 dB

  • Insulation Resistance:

    100000000 Ω

  • Isolation-Max:

    30 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TUBE

  • Physical Dimension:

    14mm x 8.6mm x 8mm

  • Relay Action:

    LATCHED

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    6 ms

  • Surface Mount:

    NO

  • Switching Time:

    16 ms

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER

  • VSWR:

    1.4

ARS16Y4H Frequently Asked Questions (FAQs)

  • The maximum switching frequency of the ARS16Y4H relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
  • The ARS16Y4H relay is designed to operate in temperatures ranging from -40°C to 85°C. However, the relay's performance and lifespan may be affected at extreme temperatures. It's recommended to consult with Panasonic's application engineers for specific guidance on using the relay in high-temperature environments.
  • Panasonic provides a recommended PCB layout and spacing guideline for the ARS16Y4H relay in their application notes. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
  • The ARS16Y4H relay is designed to withstand moderate vibrations, but it's not suitable for extreme vibration environments. If your application involves high vibrations, it's recommended to consult with Panasonic's application engineers to determine the relay's suitability and potential modifications to ensure reliable operation.
  • Panasonic provides a derating curve for the ARS16Y4H relay in their datasheet. It's essential to follow this curve to ensure the relay operates within its specified ratings and to prevent overheating or premature failure.
